Schneider Electric AP8881 Rack PDU 2G Metered ZeroU 11 kW 230 V (36) C13 & (6) C19

Your rating:
Average rating
product review for Schneider Electric AP8881 Rack PDU 2G Metered ZeroU 11 kW 230 V (36) C13 & (6) C19
( 4 / 5 ) 1 ratings
Schneider Electric AP8881
This image may differ from the desired article.
Schneider Electric AP8881Schneider Electric AP8881Schneider Electric AP8881Schneider Electric AP8881
2.432,95 EUR 2.535,39 EUR
( 2.895,21 EUR incl. VAT )
≈ £2,026.65  |  ≈ $2,668.95
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 22 workdaysinfo_outline
1x Schneider Electric AP8881 Rack PDU 2G Metered ZeroU 11 kW 230 V (36) C13 & (6) C19
Datasheet:file_download Download
Lieske Part No.:1881712
Mfg Part No: AP8881
UPC/EAN: 0731304277071
Weight:8.02 kg
Type:AP8881
Graduated prices net
From piecesPrice per pieces
22.286,97 EUR
42.141,00 EUR
61.995,02 EUR
81.849,04 EUR

Product information for Schneider Electric AP8881:

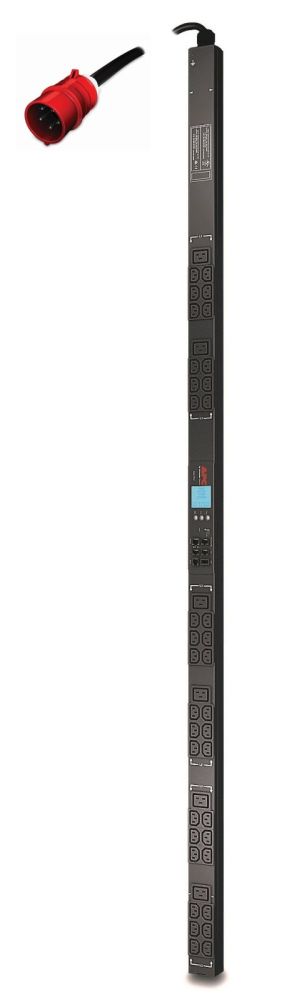

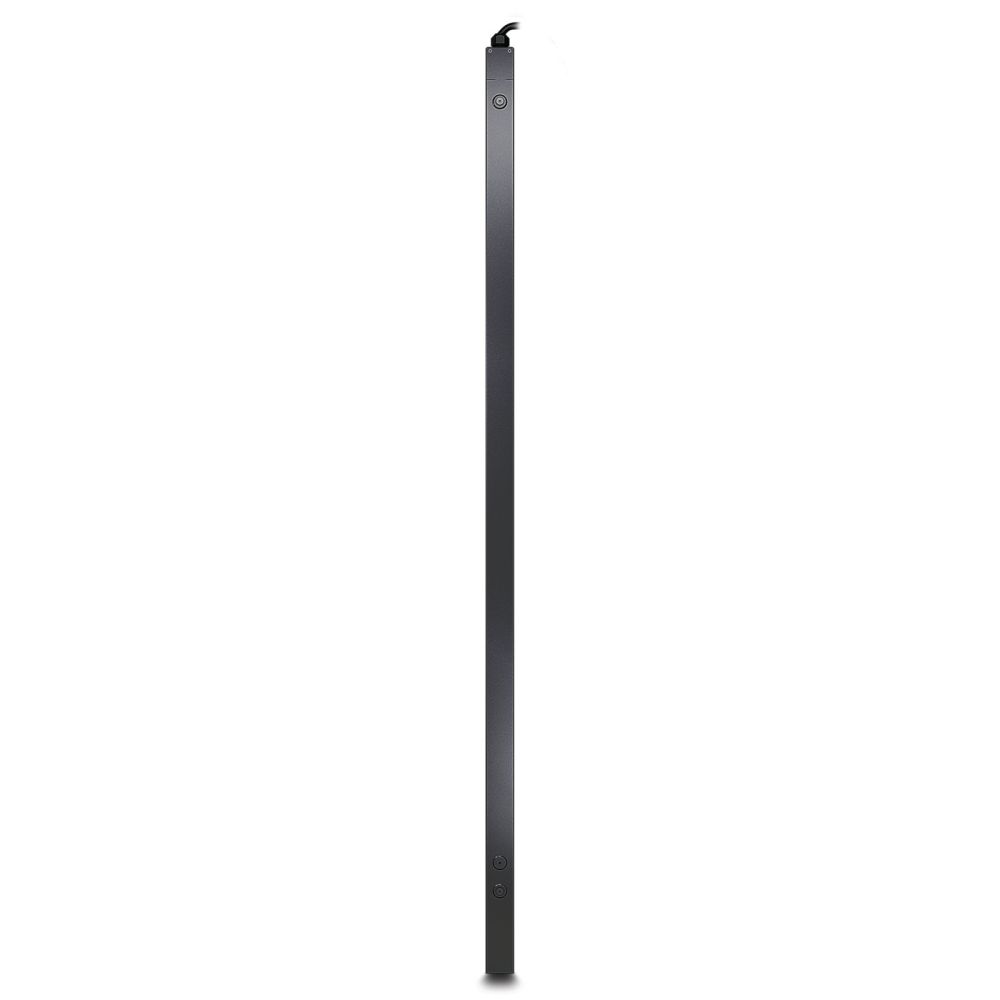

The APC Rack PDU 2G, model AP8881, is a zero-U metered PDU designed for use in server racks, offering robust power distribution with integrated energy monitoring. It enables active measurement, display, and logging of voltage, current, real power (kW), and energy consumption (kWh) to ensure precise load monitoring and optimization in IT infrastructures. With a maximum power capacity of 11 kW and a nominal voltage of 230 V, it provides reliable power supply to critical equipment. The PDU features 42 AC outlets — consisting of 36 C13 and 6 C19 sockets — all with locking mechanisms to ensure secure and stable connections. The LCD display provides real-time information, while customizable alarms warn of overloads, helping to prevent unintended power outages.

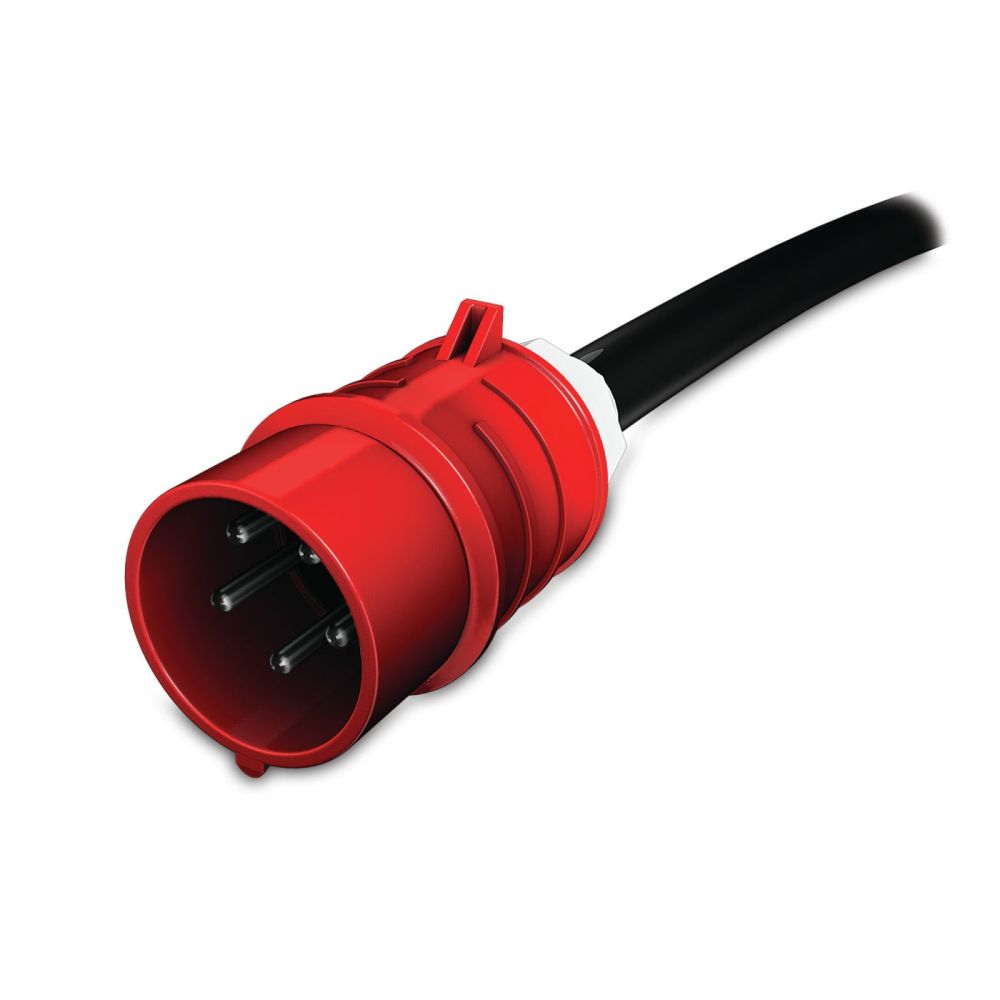

Device management is supported via web interface, SNMP, Command Line Interface (CLI), and EcoStruxure IT, enabling centralized monitoring and configuration. The Daisy-Chaining feature allows remote monitoring of up to four PDUs through a single IP address, enhancing network administration efficiency. A local USB port enables quick and easy on-site firmware updates. The PDU is vertically mountable, has a cable length of 1.83 m, and is powered via an IEC 309 3P+N+PE plug (16 A). The operating temperature ranges from 5 to 45 °C, with storage up to 65 °C permitted. The PDU is black, compact (height 1791 mm, width 56 mm, depth 44 mm), and weighs 6.38 kg. It is designed for use in three-phase power systems (nominal input voltage 400 V, frequency 50–60 Hz) and is ideal for data center managers seeking to optimize load distribution, capacity planning, and energy efficiency.

Certificates
CertificationCSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
Complementary
Mounting locationSide
Mounting modeRack-mounted
Mounting positionVertical
Height1791 mm
Width55 mm
Depth44 mm
Net weight6.38 kg
Contractual warranty
Warranty (in months)24
Design
PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack
Environmental
Product certificationsVDE
StandardsCSA C22.2 No 60950; IEC 60950; UL 60950-1
Relative humidity5…95 %
Storage Relative Humidity5…95 %
Ambient air temperature for storage-25…65 °C
Storage altitude0…15240 m
Operating altitude0...10000 ft
Ambient air temperature for operation-5…60 °C
Features
Cable length1.83 m
Logistical informations
Country of originIN
Logistics data
Total carbon footprint (kg of CO2e)41106.13
Main
Product or component typePDU
Main Input Voltage400 V 3 phases
Input current limits16 A
Network frequency50/60 Hz
Main Output Voltage230 V
Input Connection TypeIEC 60309 16 A 3P + N + PE; IEC 60309 20 A 3P + N + PE
Number of power socket outlets36 IEC 60320 C13 ; 6 IEC 60320 C19
Load capacity11000 VA
[In] rated current16 A
Max current draw16 A
Max line current16 A
PDU typeMetered
Protection typeWithout circuit breaker
Number of rack unit0U
Number of cables1
Cable length1.82 m
Provided equipmentInstallation guide; Rack mounting brackets; Serial configuration cable; Safety guide
Management features
MonitoringCurrent, Power, Voltage
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height200 cm
Package 1 Width16.2 cm
Package 1 Length10.7 cm
Package 1 Weight8.02 kg
Ports & interfaces
AC outlets quantity42 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Output connections36x IEC 320 C13 6x IEC 320 C19
Power
Nominal input voltage400 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage230 V
Load capacity11040 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power11000 W
Weight & dimensions
Width56 mm
Depth44 mm
Height1791 mm
Weight6.38 kg


Product data sheet
Datasheet for Schneider Electric AP8881, EAN: 0731304277071
