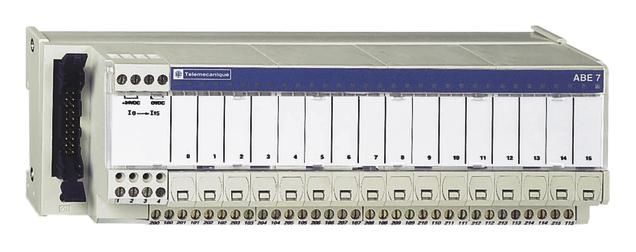

Schneider Electric ABE7P16T334 terminal block 16 channels
|
-10% 278,30 EUR 309,45 EUR |
|
|
( 331,18 EUR incl. VAT ) ≈ £232.38 | ≈ $313.64 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 584364 |
| Mfg Part No: | ABE7P16T334 |
| UPC/EAN: | 3389110705157 |
| Weight: | 0.9 kg |
| Type: | ABE7P16T334 |
Further PLC Systems from Schneider ElectricFurther products in category PLC Systems
All products of Schneider Electric
Product information for Schneider Electric ABE7P16T334:
This product is part of the Modicon ABE7 range, a range of connection bases for the Telefast pre-wired system. This connection plate for pluggable relays offers 16 channels. This product allows the quick connection of I/O modules. It is a relay subassembly with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is equipped with screw terminals for electrical connection. It is an IP2x protection product. It weighs 0.9 kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This connection plate is suitable for use with the ABS7A3M, ABE7ACC21, ABS7SC3E and ABR7S33 pluggable relays. Fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 simplifies wiring in automation systems. Pre-wired system that allows the connection and adaptation of the control signals of PLC cards equipped with HE10 connectors.
| Complementary | |
| supply voltage type | DC |
| Product compatibility | ABS7A3M; ABE7ACC21; ABS7SC3E; ABR7S33; ABS7SC3.. |
| Status LED | 1 LED per channel (green) channel status; 1 LED (green) power ON |
| Polarity distribution | Volt-free |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end); 2 A fuse per channel, 5 x 20 mm, fast blow (output circuit) |
| Fixing mode | By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 16 A |
| [Ui] rated insulation voltage | 300 V coil circuit/contact circuits conforming to IEC 60947-1; 2000 V terminals/mounting rails |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.9 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Product certifications | CSA; DNV; UL; GL; EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Logistical informations | |
| Country of origin | LV |
| Main | |
| Range of product | Modicon ABE7 |
| Product or component type | Sub-base for plug-in relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm² (24 AWG...14 AWG) solid |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 29.300 cm |
| Package 1 Weight | 875.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.736 kg |
