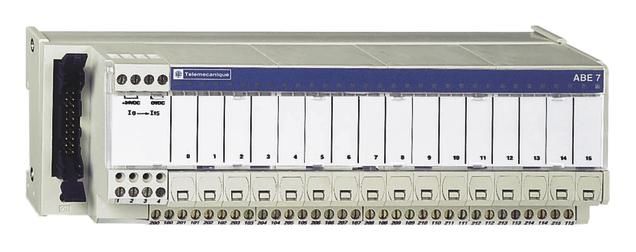

Schneider Electric ABE7P16T214 terminal block 16 channels
|
-7% 281,34 EUR 303,72 EUR |
|
|
( 334,79 EUR incl. VAT ) ≈ £234.92 | ≈ $317.07 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 584363 |
| Mfg Part No: | ABE7P16T214 |
| UPC/EAN: | 3389110644579 |
| Weight: | 0.675 kg |
| Type: | ABE7P16T214 |
Further PLC Systems from Schneider ElectricFurther products in category PLC Systems
All products of Schneider Electric
Product information for Schneider Electric ABE7P16T214:
Advantys Telefast pre-wired distribution board means simplicity to streamline the wiring of your devices in your automation system.
| Complementary | |
| supply voltage type | DC |
| Product compatibility | ABR7S2.; ABS7SA2.; ABS7SC2.; ABE7ACC20 |
| Status LED | 1 LED per channel (green) channel status; 1 LED (green) power ON |
| Polarity distribution | Volt-free |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end); 0.5 A fuse per channel, 5 x 20 mm, fast blow (output circuit) |
| Fixing mode | By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 16 A |
| [Ui] rated insulation voltage | 300 V coil circuit/contact circuits conforming to IEC 60947-1; 2000 V terminals/mounting rails |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.675 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Product certifications | CSA; GL; DNV; UL; EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Logistical informations | |
| Country of origin | LV |
| Main | |
| Range of product | Modicon ABE7 |
| Product or component type | Sub-base for plug-in relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm² (24 AWG...14 AWG) solid |
| Channel additional information | 1 switch disconnector per channel |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8 cm |
| Package 1 Width | 9.6 cm |
| Package 1 Length | 22 cm |
| Package 1 Weight | 647 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 8.258 kg |
