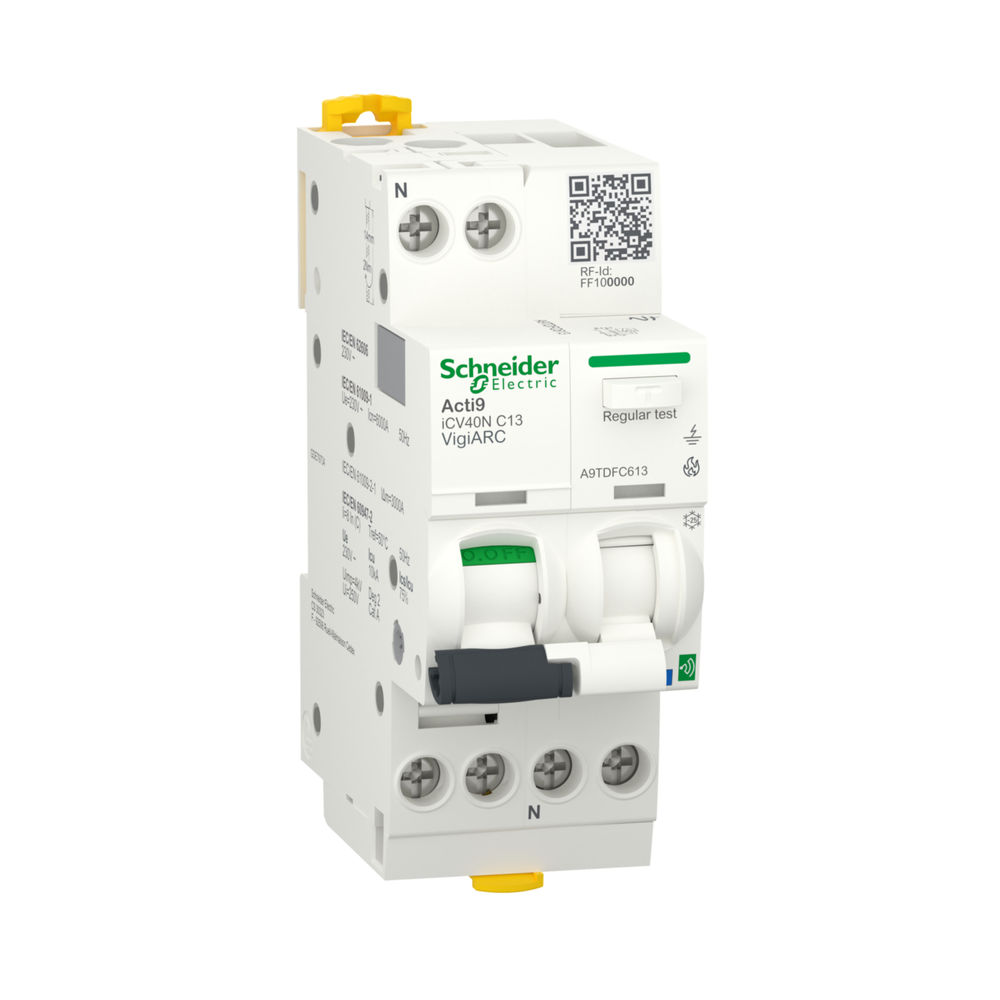

Schneider Electric A9TDFC613 Schneider Acti9 iCV40N VigiARC Active, AFDD + FI/LS + Com., 1P+N, 13A

Acti9 iCV40N VigiARC Active - is an AFDD (arc fault protection device/fire protection switch) for detecting arc faults in combination with an RCD/MCB and is communication-capable. 1P+N, 13A rated current and C characteristic. The residual current device is a type A-SI with a sensitivity of 30mA and the earth fault protection is instantaneous. The rated short-circuit breaking capacity is up to 6000A at 230VAC according to EN/IEC 61009-2-1 and 10kA at 230VAC according to EN/IEC 60947-2. This AFDD in combination with the RCD/MCB protects against short circuits, overload currents, electric shocks due to indirect contact and the risk of fire due to arc faults. This Acti9 iC40 ARC Active communicates with the EcoStruxure Panel Server Entry, Universal and Advanced gateways. With differentiated pre-alarm and trip signal for overload, earth fault, mains overvoltage and measurement of voltage, current and power. The two unique VisiTrip indicators of the Acti9 iArc reduce the intervention time by indicating the failed circuit and allowing the type of fault to be quickly identified. The electrical life is up to 10,000 and the mechanical life up to 20,000 switching cycles. The rated insulation voltage Ui is 250VAC. Limitation class 3 (according to EN/IEC60898-1). The product can be clipped onto a DIN rail. Its width is 2 TE. Pollution degree 2. Product color white (RAL9003). Dimensions (W) 36mm x (H) 91mm x (D)73mm. Protection class IP20 (according to IEC/EN 60529) and IP20 once installed in a modular housing. This product complies with EN/IEC 62606, EN/IEC 61009-2-1 and EN/IEC 60947-2.
Type: A9TDFC613
