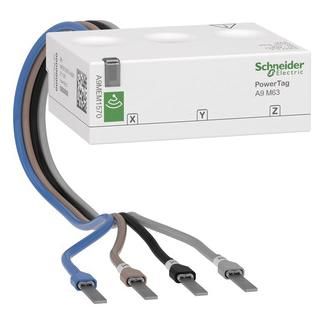

Schneider Electric A9MEM1570
Schneider Power Tag Flex 3P+n

The PowerTag Energy F63 3P+N is a wirelessly communicating energy meter. With its flexible design, it is suitable for 3P+N measuring points with a nominal power of 63A or less. The energy meter must be connected to a concentrator or a gateway. It is specially designed for energy management, load monitoring and availability applications. It includes accurate real-time measurements of active energy, active power, current, voltage and power factor. With 2 quadrant energy measurement. In case of a power failure, it sends a voltage loss alarm and the value of the current per phase before being switched off. PowerTag Energy 63A complies with the IEC 61557-12 standard. It is a PMD-I/DD/K55/1. The accuracy class is Class 1. The Imax maximum current is 63A. The Ib base current is 10A. The saturation current is 130A and the actual inrush current is 40mA. The Un rated voltage is phase-neutral 220VAC to 240VAC +/- 20% and phase-phase 380VAC to 415VAC +/- 20%. The maximum consumption is less than or equal to 2VA. It can be mounted either on the top or bottom of the protective device. The product color is white (RAL9003). The weight is 40 g. The protection class is IP20 and IK05. The operating temperature is between -25°C and +60°C. The storage temperature is between -40°C and +85°C.
Type: A9MEM1570
