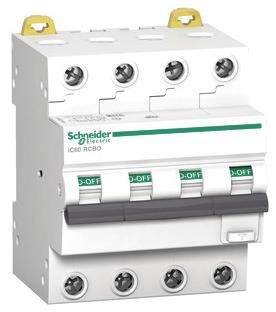

Schneider Electric A9D97413
Schneider FI/LS switch iC60N 4P
|
418,00 EUR 435,60 EUR |
|||||||||||
|
( 497,42 EUR incl. VAT ) ≈ £359.48 | ≈ $476.52 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1858131 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | A9D97413 | ||||||||||
| UPC/EAN: | 3606481157812 | ||||||||||
| Weight: | 0.43 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from Schneider ElectricFurther products in category Circuit breaker
All products of Schneider Electric
Product information for Schneider Electric A9D97413:
Residual current circuit breaker with overcurrent protection (FI/LS) Acti 9 iC60N, 6kA (IEC/EN 61009-1 and IEC/EN 61009-2-1), 6kA (IEC/EN 60947-2). 4-pole, nominal current 13A, B characteristic, earth fault sensitivity 30mA, earth fault protection class type A SI, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Guarantees comprehensive protection of final circuits against overcurrents and fault currents. Switching and disconnecting of circuits. Snap action for low-wear switching of the contacts. Mechanically separated red display when the circuit breaker is tripped or when it is tripped by a fault current. Clear switch position display through green marking on the device's switch knob. Test button for regular function testing. The SI (superimmunized) version is designed to maintain operational continuity in systems in which high transient leakage currents can occur due to operational reasons or external influences. Technology of the trip unit - thermomagnetic. Additional auxiliary modules that can be added in series (optional) - auxiliary switch for status reporting (iOF), fault reporting switch (iSD), OF/SD switch with Ti24 interface for status reporting to a programmable logic controller (iOF/SD24). Tool-free installation on the left side of the device. Color RAL 9003. The FI/LS IC60N meets the following standards - IEC/EN 61009-1, IEC/EN 61009-2-1 and IEC/EN 60947-2. This series is also VDE certified!
Type: A9D97413
Type: A9D97413
Questions & answers
What is the delivery time of Schneider Electric A9D97413 Schneider FI/LS switch iC60N 4P?
The article Schneider Electric A9D97413 Schneider FI/LS switch iC60N 4P is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric A9D97413 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric A9D97413 Schneider FI/LS switch iC60N 4P always at the best possible price. We can give you a discount of 2% on Schneider Electric A9D97413 Schneider FI/LS switch iC60N 4P if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Schneider Electric A9D97413 Schneider FI/LS switch iC60N 4P we can offer you a price of 396,06 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
