Schneider Electric A9C64325
Schneider Reflex LS switch iC60H Ti24 25A B 3-pin remote switchable
|
389,50 EUR 405,90 EUR |
|||||||||||
|
( 463,51 EUR incl. VAT ) ≈ £334.97 | ≈ $444.03 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 920536 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | A9C64325 | ||||||||||
| UPC/EAN: | 3606480455018 | ||||||||||
| Weight: | 0.693 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from Schneider ElectricFurther products in category Circuit breaker
All products of Schneider Electric
Product information for Schneider Electric A9C64325:

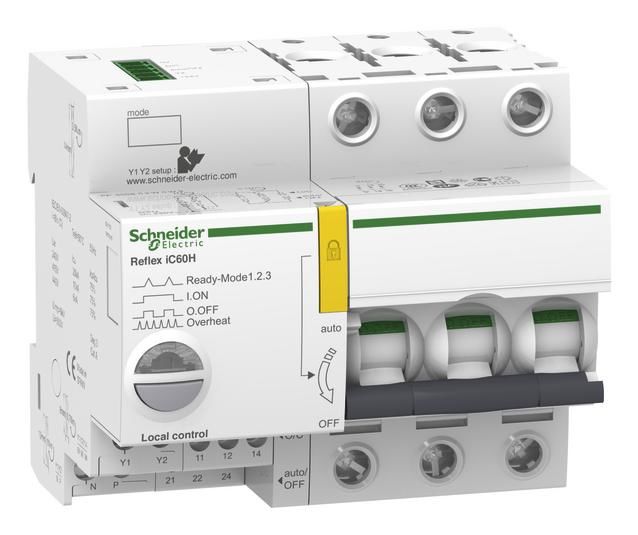

Remotely switchable circuit breaker Acti 9 Reflex iC60H, breaking capacity 30kA at 220-240V AC (EN/IEC 60947-2), 15kA at 380-415V AC (EN/IEC 60947-2). 3-pole, nominal current 25A, B characteristic, Ti24 interface, insulation voltage (Ui) 500V. Remote switching using pulse and/or continuous signal according to one of the three operating modes set by the user. Protecting circuits against short-circuit currents. Protecting circuits against overload currents. Disconnecting circuits. With Ti24 connection for direct connection to PLC or decentralized I/O. Bistable switching mechanism does not require holding power. Green display on the switch guarantees that the contacts are open and safe working is ensured on the output side. Snap action switching guarantees low-wear switching of the contacts. Operating status indicator light. Can be controlled using three adjustable operating modes using the push button on the front of the device. Protection class IP20. The iMDU coupling relay can be used to control inputs Y1 and Y2 using 24/48V AC/DC. Color RAL 9003. The remotely switchable Reflex iC60H circuit breaker complies with the following standards IEC/EN 60947-2.
Type: A9C64325
Type: A9C64325
Questions & answers
What is the delivery time of Schneider Electric A9C64325 Schneider Reflex LS switch iC60H Ti24 25A B 3-pin remote switchable?
The article Schneider Electric A9C64325 Schneider Reflex LS switch iC60H Ti24 25A B 3-pin remote switchable is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric A9C64325 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric A9C64325 Schneider Reflex LS switch iC60H Ti24 25A B 3-pin remote switchable always at the best possible price. We can give you a discount of 2% on Schneider Electric A9C64325 Schneider Reflex LS switch iC60H Ti24 25A B 3-pin remote switchable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Schneider Electric A9C64325 Schneider Reflex LS switch iC60H Ti24 25A B 3-pin remote switchable we can offer you a price of 363,21 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
