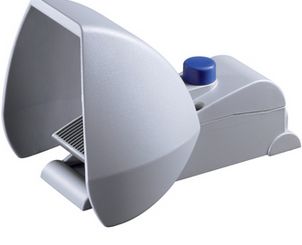

Schmersal TFH 232-22UEDR foot switch 151192630

The TFH 232-22UEDR is a robust and reliable foot switch with an integrated emergency stop function, designed for industrial applications. The housing is made of powder-coated aluminum, providing high resistance to mechanical stress. The pedal area is made of glass-fiber reinforced plastic, while the protective cover is also made of aluminum, ensuring effective protection against environmental and mechanical impacts.

The foot switch can be used in both momentary and latching modes, offering flexible operation. It features two normally closed (NC) contacts and two normally open (NO) contacts, operating on a slow-action switching principle for precise control. The switch is certified according to EN ISO 13849-1 safety standards and is designed for a maximum service life of 20 years.

With an IP65 protection rating, the foot switch is dustproof and resistant to water jets, making it suitable for harsh industrial environments. The electrical connection is made via a screw terminal M20 x 1.5, ensuring a secure connection.

The TFH 232-22UEDR offers a high mechanical lifespan of 1 million switching cycles and a maximum switching frequency of 3,600 operations per hour.
Technical Data – TFH 232-22UEDR:

Order Information:

Product Type Designation: TFH 232-22UEDR
Article Number: 151192630
EAN: 4030661529189

Approvals and Standards:

cULus
BG-GS-ET-15
DIN VDE 0660-200
EN IEC 60947-5-1

Material and Weight:

Housing Material: Aluminum
Housing Coating: Powder-coated
Cover Material: Aluminum
Pedal Material: Plastic, glass-fiber reinforced thermoplastic
Protective Cover: Aluminum
Color: White Aluminum
Gross Weight: 2,150 g

Features:

Suitable for Emergency Stop: Yes
Momentary Operation: Yes
Latching Function: Yes
Number of NC Contacts: 2
Number of NO Contacts: 2

Safety Assessment:

Standards: EN ISO 13849-1
Service Life: 20 years
B10D Value for NC Contacts: 100,000 switching cycles

Mechanical Data:

Minimum Mechanical Lifespan: 1,000,000 switching cycles

Connection Technology:

Connection Type: Screw Terminal M20 x 1.5
Maximum Wire Cross-Section: 2.5 mm²

Dimensions:

Width: 170 mm
Height: 189 mm
Depth: 274 mm

Environmental Conditions:

Protection Rating: IP65
Operating Temperature: -25 °C to +60 °C
Storage and Transport Temperature: -25 °C to +85 °C
Relative Humidity: 30 % to 95 %, non-condensing, non-freezing
Vibration Resistance: 10 to 150 Hz, Amplitude 0.35 mm / 5 g
Shock Resistance: 30 g / 11 ms

Insulation Ratings:

Rated Insulation Voltage (Ui): 500 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Overvoltage Category: III
Pollution Degree: 3

Electrical Data:

Thermal Continuous Current: 10 A
Conditional Short-Circuit Current: 1,000 A
Voltage, AC-15 Category: 230 VAC
Current, AC-15 Category: 4 A
Voltage, DC-13 Category: 24 VDC
Current, DC-13 Category: 1 A

Switching Elements:

NO and NC Contacts
Switching Principle: Slow-Action Switching
Maximum Switching Frequency: 3,600 operations per hour
Type: TFH 232-22UEDR
