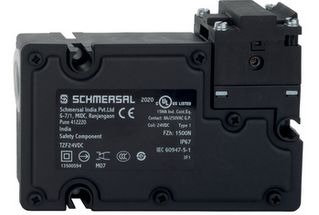

Schmersal TZFS24VDC safety locking device 131017671

The TZFS24VDC is a compact electromechanical safety switch with a locking function, designed to secure sliding, removable, and rotating protective guards. Operating on the closed-circuit principle, the locking mechanism releases in case of a power failure, ensuring safety during emergencies.

The housing is made of durable glass-fiber reinforced thermoplastic, providing excellent mechanical stability. The switch offers a locking force of 1,500 N in accordance with EN ISO 14119, ensuring that the protective guard remains securely closed under external forces. With IP65 and IP65 protection, the switch is resistant to dust and water, making it suitable for harsh industrial environments.

The TZFS24VDC features two safety contacts and one auxiliary contact, with positive-opening contacts ensuring reliable operation even in case of mechanical failure. The switch includes a manual release mechanism, operated by a triangular key (M3), which is included in the delivery.

The device is rated for a control supply voltage of 24 VDC and supports both AC and DC categories. The connection is made via screw terminals, allowing for easy and secure installation.

The switch meets the requirements of EN ISO 13849-1 and achieves a Performance Level of up to e, depending on the application.
Technical Data – TZFS24VDC:

Order Information:

Product Type Designation: TZFS24VDC
Article Number: 131017671
EAN: 8905236105999

Approvals and Certificates:

cULus
CCC

Standards:

BG-GS-ET-19
EN IEC 60947-5-1

Material and Weight:

Housing Material: Plastic, glass-fiber reinforced thermoplastic
Gross Weight: 480 g

Features:

Closed-Circuit Principle: Yes
Manual Release: Yes (Triangular Key M3 included)
Number of Approach Directions: 4
Number of Safety Contacts: 2
Number of Auxiliary Contacts: 1

Mechanical Data:

Mechanical Lifespan: 1,000,000 switching cycles
Locking Force (FZh): 1,500 N
Latching Force: 20 N
Positive Opening Distance: 3.5 mm
Positive Opening Force: 20 N per NC contact
Max. Actuation Speed: 0.3 m/s

Connection Technology:

Cable Entry: 1 x M20 x 1.5
Connection Type: Screw Terminals
Wire Cross-Section: 1 x 0.5 mm² to 1 x 1.5 mm²

Dimensions:

Sensor Length: 41 mm
Sensor Width: 129 mm
Sensor Height: 92.5 mm

Environmental Conditions:

Protection Rating: IP65 / IP65
Operating Temperature: 0 to +50 °C
Relative Humidity: Non-condensing, non-icing

Insulation Ratings:

Rated Insulation Voltage (Ui): 250 VAC
Rated Impulse Withstand Voltage (Uimp): 2.5 kV

Electrical Data:

Thermal Continuous Current: 4 A
Rated Control Supply Voltage: 24 VDC
Conditional Rated Short-Circuit Current: 1,000 A
Max. Power Consumption: 8.5 W

Application Areas:

Sliding Protective Guards
Removable Protective Guards
Rotating Protective Guards

Scope of Delivery:

Includes TZ/CO Actuator
Triangular Key M3 for manual release included
Type: TZFS24VDC
