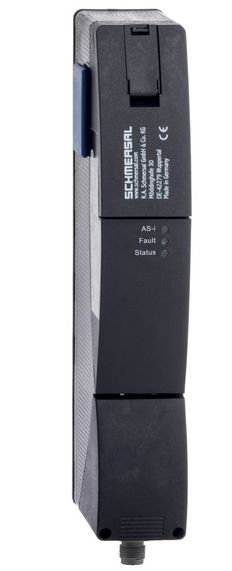

Schmersal AZM201BZ-ST-T-AS-P AS-Interface Safety at Work 103025873

The AZM201BZ-ST-T-AS-P RFID safety switch offers a secure and innovative solution for monitoring doors and protective covers in safety-critical applications. It features universal coding and an AS-Interface connection for seamless integration into automation systems. The switch delivers a maximum retention force of 2600 N and meets the highest safety standards according to EN ISO 13849-1 with Performance Level e and Category 4. The durable construction and advanced RFID technology ensure reliable performance in demanding environments.

Technical Data:

Product Designation:

• AZM201BZ-ST-T-AS-P

Article Number:

• 103025873

EAN:

• 4030661524313

eCl@ss Numbers:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

ETIM Numbers:

• Version 7.0: EC002593
• Version 6.0: EC002593

Approvals and Standards:

• Certificates: TÜV, cULus, ASi-SaW, FCC, IC, ANATEL
• Standards: EN IEC 62026-2, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508

General Data:

• Coding: Universal coding
• Coding level per EN ISO 14119: Low
• Operating principle: RFID
• RFID frequency band: 125 kHz
• RFID transmission power, maximum: -6 dB/m
• Housing material: Plastic, glass fiber reinforced thermoplastic
• Reaction time, maximum: 100 ms
• Risk time, maximum: 200 ms
• Gross weight: 541 g

General Properties:

• Closed-circuit principle: Yes
• Combined actuator and interlocking monitoring: Yes
• Latching: Yes
• Auxiliary release: Yes
• Safety functions: Yes
• Integrated status indicator: Yes
• Number of approach directions: 2

Safety Considerations:

• Standards: EN ISO 13849-1, EN IEC 61508
• Service life: 20 years

Safety Considerations - Locking Function:

• Performance Level, up to: e
• Category: 4
• PFH Value: 1.81 x 10⁻⁹ /h
• PFD Value: 1.59 x 10⁻⁴
• Safety Integrity Level (SIL), suitable for: 3

Safety Considerations - Retention Function:

• Performance Level, up to: e

Mechanical Data:

• Mechanical lifespan, minimum: 1,000,000 operations
• Retention force FZh per EN ISO 14119: 2,000 N
• Retention force Fmax, maximum: 2,600 N
• Latching force: 30 N
• Maximum actuation speed: 0.2 m/s
• Fastening screws: 2x M6
• Screw tightening torque, maximum: 8 Nm
• Torque for cover screws: 0.7–1 Nm

Mechanical Connection:

• Connection type: Embedded connector M12, 4-pin, A-coded

Dimensions:

• Sensor length: 50 mm
• Sensor width: 40 mm
• Sensor height: 235.5 mm

Environmental Conditions:

• Protection class: IP66, IP66
• Ambient temperature: -25 ... +60 °C
• Storage and transport temperature: -25 ... +85 °C
• Relative humidity, max: 93 % (non-condensing, non-freezing)
• Vibration resistance: 10 ... 150 Hz, amplitude 0.35 mm
• Shock resistance: 30 g / 11 ms
• Insulation class: III

Electrical Data:

Maximum switch frequency: 1 Hz

AS-Interface Data:

Operating voltage: 26.5 ... 31.6 VDC

AS-i current consumption, max: 100 mA

Auxiliary Voltage (Aux):

Operating voltage: 24 VDC -15 % / +10 %

Current consumption: 500 mA

Protection: 4 A

Additional Notes:

Includes advanced diagnostics via AS-i protocol

Designed for industrial automation and safety-critical installations

Type: AZM201BZ-ST-T-AS-P
