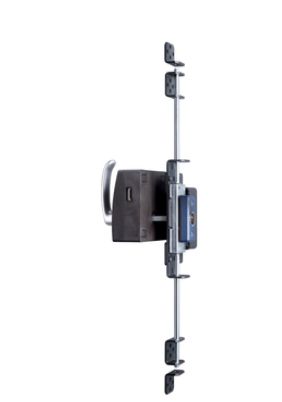

Schmersal AZ/AZM201-B30-LTAG1P30 door handle actuator 103015820
|
466,03 EUR |
|||||||||||
|
( 554,58 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2131021 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103015820 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103015820:
Product Description in English:
The AZ/AZM201-B30-LTAG1P30 actuator unit is a highly robust and reliable component specifically designed for use with the AZ/AZM201 series devices. Its durable construction of glass-fiber-reinforced thermoplastic and zinc die-cast offers an impressive locking force of up to 7,150 N. Featuring a left-side door hinge and mechanics engineered for a service life of at least 1,000,000 switching operations, this unit ensures maximum safety and efficiency.
Technical Data:
Order Details:
- Product Type: AZ/AZM201-B30-LTAG1P30
- Article Number: 103015820
- EAN: 4030661504223
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-27-26-06
- ETIM Version 7.0: EC001487
Approvals and Notes:
- Note: Certification in combination with AZ/AZM201 series devices
General Information:
- Housing Material: Glass-fiber-reinforced thermoplastic
- Actuator Material: Zinc die-cast
- Handle Material: Aluminum, plastic-coated
- Gross Weight: 3,828 g
Mechanical Data:
- Handle: Door handle
- Door Hinge: Left
- Mechanical Lifetime: At least 1,000,000 switching operations
- Locking Force FZh (EN ISO 14119): 5,500 N
- Maximum Locking Force Fmax: 7,150 N
- Actuator Mounting: External
Dimensions:
- Actuator Length: 94 mm
- Actuator Width: 115 mm
- Actuator Height: 115 mm
- Locking Rod Length: 44 mm
- Locking Rod Width: 75 mm
- Locking Rod Height: 2,600 mm - Note: Customer trimming of locking rods is possible
- Actuator Unit AZ/AZM201-B30 with square bar
- Locking rod mechanism with guide plate
- 4x Countersunk screws M5x10
- 4x U-pieces
- 2x Hex nuts M8
- 2x Locking rods, 1200 mm, galvanized
- Counter bearing (P30) or complete emergency release (P31)
Included Items:
Type: AZ/AZM201-B30-LTAG1P30
Questions & answers
What is the delivery time of Schmersal AZ/AZM201-B30-LTAG1P30 door handle actuator 103015820?
The article Schmersal AZ/AZM201-B30-LTAG1P30 door handle actuator 103015820 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103015820 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZ/AZM201-B30-LTAG1P30 door handle actuator 103015820 always at the best possible price. We can give you a discount of 2% on Schmersal AZ/AZM201-B30-LTAG1P30 door handle actuator 103015820 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZ/AZM201-B30-LTAG1P30 door handle actuator 103015820 we can offer you a price of 459,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
