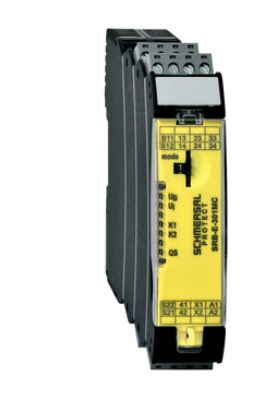

Schmersal SRB-E-301MC multifunctional safety module 103014374
|
209,24 EUR |
|||||||||||
|
( 249,00 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1779661 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103014374 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103014374:
Product Description in English:
The SRB-E-301MC safety relay module provides a reliable solution for a wide range of safety-critical applications. It is designed for monitoring safety sensors, emergency stop buttons, rope pull switches, and safety light barriers. With a high protection rating and robust fiberglass-reinforced plastic housing, the module is ideal for demanding industrial environments.
Technical Data:
Order Details:
- Product Type: SRB-E-301MC
- Article Number: 103014374
- EAN: 4030661508696
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-18-19
- ETIM Version 7.0: EC001449
Approvals and Regulations:
- Certificates: TÜV, cULus, CCC
- Standards: EN IEC 62061, EN ISO 13849-1, EN IEC 60947-5-1, EN IEC 61508
General Information:
- Housing Material: Fiberglass-reinforced thermoplastic
- Climatic Conditions: EN 60068-2-78
- Gross Weight: 175 g
Features:
- Electronic Fuse: Yes
- Wire Break and Cross-Short Detection: Yes
- Detachable Terminals: Yes
- Automatic Reset Function: Yes
- Integrated Indicators: Status LEDs (5)
Safety Considerations:
- Stop Category: 0
- Performance Level: up to e
- Category: 4
- SIL: Suitable for SIL3 applications
- Service Life: 20 years
Mechanical Data:
- Mechanical Life: min. 10,000,000 cycles
- Mounting: Snap-on mounting for DIN rail per IEC 60715
- Dimensions (W x H x D): 22.5 mm x 98 mm x 115 mm
Environmental Conditions:
- Housing Protection Class: IP40
- Operating Temperature: -25 °C to +60 °C
- Shock Resistance: 30 g / 11 ms
Electrical Data:
- Operating Voltage: 24 VAC/DC
- Rated Power Consumption: 2.9 W / 5 VA
- Safe Relay Outputs: - AC-15: 230 VAC / 4 A
- Maximum Switching Frequency: 0.3 Hz
- DC-13: 24 VDC / 4 A
Applications:
- Safety Sensors
- Safety Devices
- Emergency Stop Buttons
- Safety Light Curtains and Barriers
Notes:
- Self-cleaning, force-guided contacts (Ag-Ni)
- Suitable for use in systems with Performance Level e and Category 4.
Type: SRB-E-301MC
Questions & answers
What is the delivery time of Schmersal SRB-E-301MC multifunctional safety module 103014374?
The article Schmersal SRB-E-301MC multifunctional safety module 103014374 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103014374 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal SRB-E-301MC multifunctional safety module 103014374 always at the best possible price. We can give you a discount of 2% on Schmersal SRB-E-301MC multifunctional safety module 103014374 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal SRB-E-301MC multifunctional safety module 103014374 we can offer you a price of 206,10 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
