Schmersal AZ/AZM201-B30-LTAG1P1 Si.switch with separate actuator 103013498
|
289,38 EUR |
|||||||||||
|
( 344,36 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1779660 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103013498 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103013498:

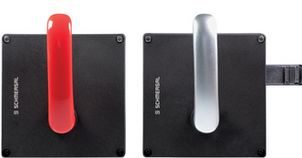

The actuator unit AZ/AZM201-B30-LTAG1P1 is a robust and reliable solution designed for use with the AZ/AZM201 safety switch series. Constructed from high-quality glass fiber-reinforced thermoplastic and zinc die-cast, it offers excellent durability and stability. The integrated door handle with escape release ensures safe operation and quick emergency opening. With a maximum retention force of 2,600 N, the unit is ideal for demanding industrial applications. The actuator is designed for doors with a left-hand hinge.
Technical Data:
Product Designation:- AZ/AZM201-B30-LTAG1P1
Article Number:
- 103013498
EAN:
- 4030661493466
Certifications and Standards:
- Note: Certification in combination with AZ/AZM201 devices
Materials:
- Housing: Plastic, glass fiber-reinforced thermoplastic
- Actuator: Zinc die-cast
- Operating Element: Aluminum, plastic-coated
- Escape Release: Metal, plastic-coated
Gross Weight:
- 1.108 g
Features:
- Escape Release: Yes
Mechanical Data:
- Handle: Door handle
- Mechanical Lifespan: min. 1,000,000 cycles
- Door Hinge: Left
- Retention Force FZh according to EN ISO 14119: 2,000 N
- Maximum Retention Force Fmax: 2,600 N
- Actuator Mounting: External
Dimensions:
- Actuator Length: 94 mm
- Actuator Width: 115 mm
- Actuator Height: 115 mm
- Escape Release Length: 68 mm
- Escape Release Width: 115 mm
- Escape Release Height: 115 mm
Scope of Delivery:
- Safety switch/locking device and actuator unit must be ordered separately.
Type: AZ/AZM201-B30-LTAG1P1
Questions & answers
What is the delivery time of Schmersal AZ/AZM201-B30-LTAG1P1 Si.switch with separate actuator 103013498?
The article Schmersal AZ/AZM201-B30-LTAG1P1 Si.switch with separate actuator 103013498 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103013498 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZ/AZM201-B30-LTAG1P1 Si.switch with separate actuator 103013498 always at the best possible price. We can give you a discount of 2% on Schmersal AZ/AZM201-B30-LTAG1P1 Si.switch with separate actuator 103013498 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZ/AZM201-B30-LTAG1P1 Si.switch with separate actuator 103013498 we can offer you a price of 285,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
