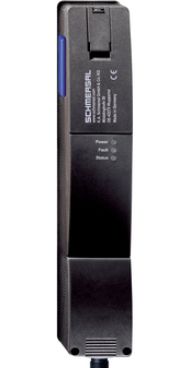

Schmersal AZM201Z-I2-ST2-T-1P2PW safety interlock 103013486
|
568,69 EUR |
|||||||||||
|
( 676,74 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2106202 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103013486 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103013486:
Technical Data:
Order Details:
- Product Type: AZM201Z-I2-ST2-T-1P2PW
- Article Number: 103013486
- EAN: 4030661493299
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-27-26-03
- ETIM Version 7.0: EC002593
Approvals and Standards:
- Certifications: TÜV, cULus, FCC, IC, UKCA, ANATEL
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
General Information:
- Coding: Individual coding, multi-teachable
- RFID Frequency Band: 125 kHz
- Housing Material: Glass-fiber reinforced thermoplastic
- Gross Weight: 588 g
Features:
- Normally Closed Principle: Yes
- Safety Contacts: 2
- Series Connection: Unlimited, external line protection required
- Safety Functions: Yes
Safety Considerations:
- Performance Level (Locking Function): Up to PL e
- Performance Level (Holding Function): Up to PL d
- Category (Locking Function): 4
- Category (Holding Function): 2
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifetime: At least 1,000,000 operations
- Locking Force: Up to 2,600 N
- Latching Force: 30 N
- Maximum Actuation Speed: 0.2 m/s
Connection Technology:
- Connection Type: M12, 8-pin connector
- Maximum Sensor Chain Length: 200 m
Dimensions:
- Length: 50 mm
- Width: 40 mm
- Height: 220 mm
Environmental Conditions:
- Protection Class: IP67, IP67
- Operating Temperature: -25 ... +60 °C
- Relative Humidity: Up to 93 %, non-condensing
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- Rated Operating Current: 1,200 mA
- Safety Outputs: P-switching, short-circuit proof
- Voltage Drop: Max. 2 V
Included Items and Accessories:
- Triangular Key included
- Actuators (e.g., AZ/AZM201-B1 or AZ/AZM201-B30) sold separately
Type: AZM201Z-I2-ST2-T-1P2PW
Questions & answers
What is the delivery time of Schmersal AZM201Z-I2-ST2-T-1P2PW safety interlock 103013486?
The article Schmersal AZM201Z-I2-ST2-T-1P2PW safety interlock 103013486 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103013486 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM201Z-I2-ST2-T-1P2PW safety interlock 103013486 always at the best possible price. We can give you a discount of 2% on Schmersal AZM201Z-I2-ST2-T-1P2PW safety interlock 103013486 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Schmersal AZM201Z-I2-ST2-T-1P2PW safety interlock 103013486 we can offer you a price of 560,16 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
