Schmersal AZ 16-12ZI-B6R-M20 safety switch with separate actuator 103010579
|
87,36 EUR |
|||||||||||
|
( 103,96 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1130965 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103010579 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103010579:

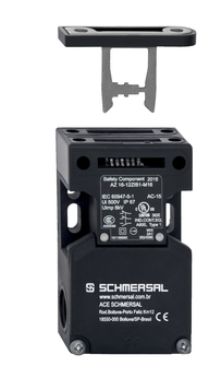

The safety switch AZ 16-12ZI-B6R-M20 is a robust and reliable solution for industrial safety requirements. Its housing, made from glass fiber-reinforced thermoplastic, ensures high resistance to mechanical and thermal stresses. The individually coded actuator, crafted from stainless steel, provides tamper-proof operation. With an IP67 protection rating, the switch is suitable for demanding environments such as high humidity or dusty conditions. The precise mechanics allow a minimum operating radius of just 35 mm, making it ideal for pivotable safety guards. With a mechanical lifespan exceeding 1,000,000 cycles and an electrical lifespan of up to 20 years, this model offers exceptional durability.
Technical Data:
Product Designation:- AZ 16-12ZI-B6R-M20
Article Number:
- 103010579
EAN:
- 4030661473109
Certifications and Standards:
- cULus
- EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
Housing Material:
- Plastic, glass fiber-reinforced thermoplastic, self-extinguishing
Actuator Material:
- Stainless steel
Protection Class:
- IP67
Dimensions:
- Length: 30 mm
- Width: 52 mm
- Height: 90 mm
Electrical Data:
- Operating Voltage AC-15: 230 VAC, Current: 4 A
- Operating Voltage DC-13: 24 VDC, Current: 4 A
- Switching Element: 1 normally open (NO), 2 normally closed (NC)
- Max. Switching Frequency: 4,000 cycles/hour
Mechanical Data:
- Minimum Operating Radius: 35 mm
- Positive Opening Travel: 8 mm
- Mounting: Screws (2x M6)
Environmental Conditions:
- Ambient Temperature: -30 °C to +80 °C
- Storage and Transport Temperature: -40 °C to +85 °C
Scope of Delivery:
- Individually coded B6 actuator in right-hand configuration
- Note: The actuator is not available separately.
Type: AZ 16-12ZI-B6R-M20
Questions & answers
What is the delivery time of Schmersal AZ 16-12ZI-B6R-M20 safety switch with separate actuator 103010579?
The article Schmersal AZ 16-12ZI-B6R-M20 safety switch with separate actuator 103010579 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103010579 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZ 16-12ZI-B6R-M20 safety switch with separate actuator 103010579 always at the best possible price. We can give you a discount of 2% on Schmersal AZ 16-12ZI-B6R-M20 safety switch with separate actuator 103010579 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal AZ 16-12ZI-B6R-M20 safety switch with separate actuator 103010579 we can offer you a price of 86,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
