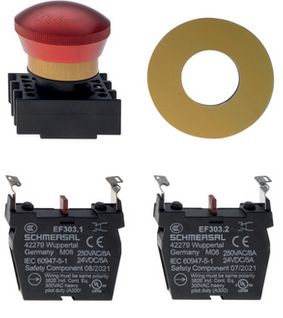

Schmersal EDRR40RT/2x303/GB EMERGENCY STOP button red 103008214
|
76,68 EUR |
|||||||||||
|
( 91,25 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1345341 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103008214 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103008214:
The EDRR40RT/2x303/GB is a versatile pushbutton switch with a turn-pull release mechanism, designed for safety functions in compliance with EN ISO 13850. It features a durable aluminum construction, red push cap, and reliable performance in demanding environments.
Technical Data:
Product Designation:
- EDRR40RT/2x303/GB
Article Number:
- 103008214
EAN:
- 4030661452838
eCl@ss Numbers:
- Version 12.0: 27-37-12-12
- Version 11.0: 27-37-12-12
- Version 9.0: 27-37-12-12
ETIM Numbers:
- Version 7.0: EC001038
- Version 6.0: EC001038
Approvals - Regulations:
- Certificates: cULus
- Standards: EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-1
General Data:
- Material of Actuator: Aluminum
- Color of Actuator: Red
- Gross Weight: 80 g
General Data - Features:
- Safety Functions: Yes
- Latching: Yes
- Full Insulation: Yes
- Number of NC Contacts: 2
- Number of NO Contacts: 2
Mechanical Data:
- Release Mechanism: Turn-Pull Release
- Mechanical Lifetime, Minimum: 100,000 cycles
- Actuating Travel: 5 mm
- Positive Opening Travel: 2 mm
- Contact Gap: 3 mm (NO), 3 mm (NC)
- Mounting: Flange Mount ELM
- Tightening Torque: 0.6 Nm
- Mounting Flange Positions: 1, 3
Mechanical Data - Connection Technology:
- Connection Type: Screw Terminal M20 x 1.5
- Connection Cross-Section: - Minimum: 0.5 mm² (solid/flexible)
- Note: Includes wire ferrules
- Maximum: 2.5 mm² (solid), 1.5 mm² (flexible)
Mechanical Data - Dimensions:
- Length: 46 mm
- Height: 29 mm
- Depth: 65 mm
- Cap Diameter: 38.5 mm
- Mounting Hole Diameter: 22.3 mm
- Panel Thickness: 1.5 - 6 mm
Environmental Conditions:
- Protection Rating: IP65
- Switching Chamber Protection Rating: IP65
- Terminal Protection Rating: IP65
- Ambient Temperature: -25 ... +80 °C
- Shock Resistance: 70 g / 4 ms
- Vibration Resistance: 20 g / 10 … 200 Hz
Environmental Conditions - Insulation Properties:
- Rated Insulation Voltage Ui: 400 V
Electrical Data:
- Thermal Continuous Current: 10 A
- Voltage, Utilization Category AC-15: 230 VAC
- Current, Utilization Category AC-15: 8 A
- Voltage, Utilization Category DC-13: 24 VDC
- Current, Utilization Category DC-13: 5 A
- Switching Element: NC Contact, NO Contact
- Switching Principle: Slow-Action
- Bounce Time, Maximum: 5 ms
- Maximum Switching Frequency: 600 /h
- Contact Designation: 11-12, 23-24
Included:
- Note: Supplied with Mounting Flange ELM
Type: EDRR40RT/2x303/GB
Questions & answers
What is the delivery time of Schmersal EDRR40RT/2x303/GB EMERGENCY STOP button red 103008214?
The article Schmersal EDRR40RT/2x303/GB EMERGENCY STOP button red 103008214 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103008214 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal EDRR40RT/2x303/GB EMERGENCY STOP button red 103008214 always at the best possible price. We can give you a discount of 2% on Schmersal EDRR40RT/2x303/GB EMERGENCY STOP button red 103008214 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal EDRR40RT/2x303/GB EMERGENCY STOP button red 103008214 we can offer you a price of 74,38 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
