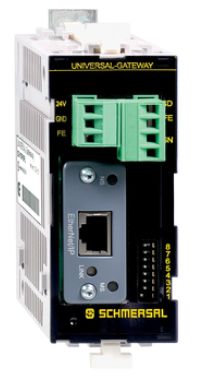

Schmersal SD-IU-EC Gateway 103008132

The SD-I-U-EC from K.A. Schmersal GmbH & Co. KG is an EtherCAT gateway designed for integrating safety sensors and protective devices into industrial networks. It enables serial diagnostics of safety components via the EtherCAT communication protocol, efficiently transmitting comprehensive diagnostic data to the higher-level control system.

The device features an integrated status display with one LED, indicating the operating status. It is mounted using a quick-mount system for DIN EN 60715 rails, allowing for fast and easy installation. The connection is made via spring-loaded terminals, ensuring a secure and vibration-resistant connection.

The SD-I-U-EC provides high electromagnetic compatibility according to EN 61000-4-2, EN 61000-4-4, and EN 61000-4-5, making it reliable even in environments with high electromagnetic interference. The housing has a protection rating of IP20, making it suitable for use in control cabinets. The device operates at 24 VDC and has a rated operating current of 500 mA.

With compact dimensions of 50 mm width, 100 mm height, and 80 mm depth, the device can be installed in space-constrained areas. It is ideal for applications requiring the integration of safety sensors into industrial networks using EtherCAT.

Technical Data (English):

Product Type Designation:

• SD-I-U-EC

Item Number (Order Number):

• 103008132

EAN (European Article Number):

• 4030661452210

eCl@ss Number:

• Version 12.0: 27-23-02-06
• Version 11.0: 27-23-02-06
• Version 9.0: 27-23-02-08

ETIM Number:

• Version 7.0: EC001099
• Version 6.0: EC001099

Approvals – Regulations:

• Certificates: cULus

General Data:

• Gross Weight: 322 g
• Integrated Status Display: Yes
• Number of LEDs: 1

Mechanical Data:

• Mounting: Quick mounting for DIN EN 60715 rail

Mechanical Data – Connection Technology:

• Connection Type: Spring-loaded terminals

Mechanical Dimensions:

• Width: 50 mm
• Height: 100 mm
• Depth: 80 mm

Environmental Conditions:

• Housing Protection Rating: IP20
• Operating Temperature: +0 ... +55 °C
• Storage and Transport Temperature: -25 ... +75 °C
• Relative Humidity, Minimum: 30 %
• Relative Humidity, Maximum: 85 % (non-condensing)
• Vibration Resistance: 10 ... 57 Hz, Amplitude 0.35 mm / 57 ... 150 Hz, with 5 g
• Shock Resistance: 10 g

Insulation Ratings:

• Rated Insulation Voltage Ui: 32 V
• Rated Impulse Withstand Voltage Uimp: 0.5 kV
• Overvoltage Category: II
• Pollution Degree: 2

Electrical Data:

• Operating Voltage: 24 VDC -15 % / +20 % (stabilized PELV power supply)
• Rated Operating Voltage: 24 VDC
• Rated Operating Current: 500 mA

Communication Protocol:

• Fieldbus Protocol: EtherCAT

Electromagnetic Compatibility (EMC):

• EMC: EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
• Emission: IEC 61000-6-4 (2002)
• Immunity: EN 61000-4-3, EN 61000-4-6

Additional Information:

Application Notes: Safety Sensor, Protective Device

Type: SD-I-U-EC
