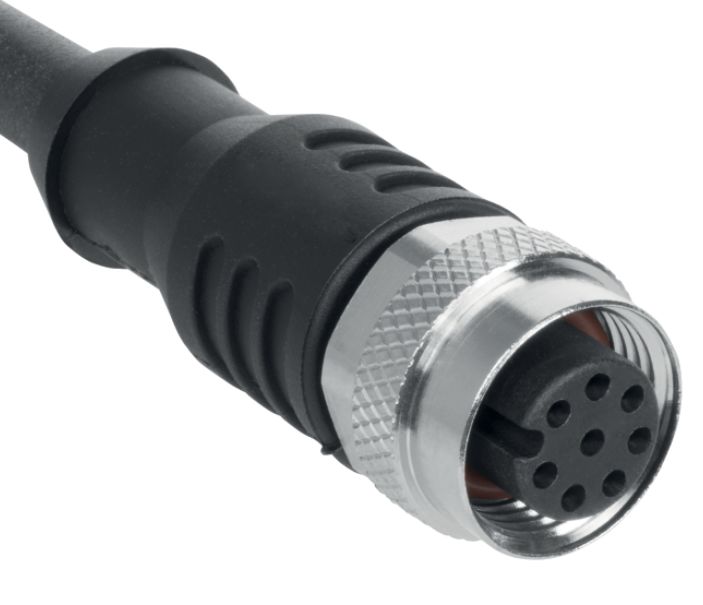

Schmersal A-K8P-M12-SG-5M-BK-2-XA-2 connector M12 8-pin 103007358

The A-K8P-M12-S-G-5M-BK-2-X-A-4-69 is a high-quality M12 connection cable with an 8-pin coupling and a 5-meter cable length. Designed for industrial use in demanding environments, the cable complies with EN IEC 61076-2-101. With a robust PUR sheath, the cable is halogen-free, drag chain compatible, and provides excellent flexibility along with superior resistance to mechanical stress.

The straight M12 connector features A-coding and a secure screw locking mechanism that ensures a reliable connection even under vibrations. The connector housing is made of nickel-plated metal (CuZn), while the grip body is made of durable TPU plastic. The cable offers protection levels up to IP69, making it resistant to dust, water, and high-pressure cleaning.

The cable is suitable for temperatures ranging from -30 °C to +90 °C in dynamic applications and can withstand drag chain use at temperatures from -25 °C to +60 °C. It has 8 cores with a cross-section of 0.25 mm² and is rated for a maximum operating voltage of 30 VAC / 30 VDC and a current of 2 A.

Thanks to its precise PIN assignment, the cable is ideal for connecting sensors, actuators, and other industrial components.
Technical Data – A-K8P-M12-S-G-5M-BK-2-X-A-4-69:

Order Information:

Product Type Designation: A-K8P-M12-S-G-5M-BK-2-X-A-4-69
Article Number: 103007358
EAN: 4030661445373

Approvals and Standards:

Certificates: cULus
Standards: EN IEC 61076-2-101

General Data:

Design: Straight
Gross Weight: 244 g
Halogen-Free: Yes
Drag Chain Compatible: Yes
Number of Conductors: 8

Mechanical Data:

Maximum Torque: 1 Nm

Connection Technology:

Cable Length: 5 m
Conductor Cross-Section: 0.25 mm²
Cable Diameter: 5.9 mm
Bending Radius (Fixed): 5 x Cable Diameter
Bending Radius (Dynamic): 10 x Cable Diameter
Cable Sheath Color: Black
Cable Sheath Material: PUR

Connector – Side A:

Connector Type: Coupling, M12
Design: Straight
Connector Coding: A
Locking Mechanism: Screw Locking
Connector Housing Material: Metal, CuZn, Nickel-Plated
Grip Body Material: Plastic, TPU
Grip Body Color: Black

Connector – Side B:

Connector Coding: A
Grip Body Color: Black

Environmental Conditions:

Protection Rating: IP65 / IP65 / IP69
Operating Temperature (Connector): -30 °C to +90 °C
Operating Temperature (Fixed): -50 °C to +90 °C
Operating Temperature (Dynamic): -30 °C to +90 °C
Operating Temperature (Drag Chain): -25 °C to +60 °C

Electrical Data:

Thermal Continuous Current: 2 A
Rated Operating Voltage: 30 VAC / 30 VDC
Rated Operating Current: 2,000 mA

PIN Assignment:

PIN 1: White
PIN 2: Brown
PIN 3: Green
PIN 4: Yellow
PIN 5: Grey
PIN 6: Pink
PIN 7: Blue
PIN 8: Red
Type: A-K8P-M12-S-G-5M-BK-2-X-A-2-69
