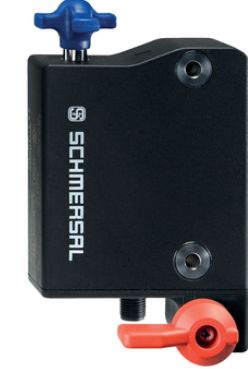

Schmersal AZM 300Z-I2-ST-1P2P-T safety locking device 103006863
|
528,56 EUR |
|||||||||||
|
( 628,99 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1128838 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103006863 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103006863:
Product Description in English:
The safety interlock AZM300Z-I2-ST-1P2P-T combines advanced RFID technology with superior safety performance and functionality. With individually programmable coding and integrated escape release, it provides comprehensive protection for demanding industrial applications. The glass-fiber-reinforced thermoplastic housing ensures high mechanical durability and longevity.
With IP66, IP66, and IP69 ratings, the device is resistant to dust, water, and even high-pressure cleaning. The safety interlock features two safe digital outputs and an integrated diagnostic indicator for easy system integration and monitoring. Its high locking force of 1,500 N and mechanical lifespan of over 1 million cycles meet the highest standards for safety and reliability.
Technical Data:
Product Type Designation:
- AZM300Z-I2-ST-1P2P-T
Order Number:
- 103006863
EAN:
- 4030661451077
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding Level: High
- Operating Principle: RFID
- Frequency Band: 125 kHz
- Housing Material: Glass-Fiber-Reinforced Thermoplastic
- Gross Weight: 639 g
Mechanical Data:
- Locking Force: 1,150 N (EN ISO 14119), max. 1,500 N
- Latching Force: 25 N / 50 N (adjustable)
- Dimensions: Length 146 mm, Width 87.5 mm, Height 55 mm
- Protection Class: IP66, IP66, IP69
- Mechanical Lifespan: 1,000,000 cycles
Electrical Data:
- Operating Voltage: 24 VDC ±15 %
- Max. Switching Frequency: 0.5 Hz
- Safe Digital Outputs: 2 (p-switching, short-circuit-proof)
- Diagnostic Output: 1 (short-circuit-proof, p-switching)
- Connection Type: M12 connector, 8-pin
Environmental Conditions:
- Operating Temperature: 0 °C to +60 °C
- Storage and Transport Temperature: -10 °C to +90 °C
- Relative Humidity: max. 93 %, non-condensing
Scope of Delivery:
- Actuator not included.
Notes:
- Optional Accessories: Mounting Plate MP-AZ/AZM300-1, Mounting Kit MS-AZ/AZM300-B1-1
- Integrated escape release for emergencies.
Type: AZM 300Z-I2-ST-1P2P-T
Questions & answers
What is the delivery time of Schmersal AZM 300Z-I2-ST-1P2P-T safety locking device 103006863?
The article Schmersal AZM 300Z-I2-ST-1P2P-T safety locking device 103006863 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103006863 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 300Z-I2-ST-1P2P-T safety locking device 103006863 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 300Z-I2-ST-1P2P-T safety locking device 103006863 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Schmersal AZM 300Z-I2-ST-1P2P-T safety locking device 103006863 we can offer you a price of 520,63 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
