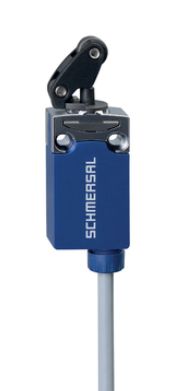

Schmersal PS116-Z11-L200-K200 position switch art.roller lever 103006637

Sales unit: 1 ST.```English
Schmersal Position Switch PS116-Z11-L200-K200

Order Details:

• Product Type Designation: PS116-Z11-L200-K200
• Article Number (Order Number): 103006637
• EAN (European Article Number): 4030661442686
• eCl@ss Number, Version 12.0: 27-27-26-01
• eCl@ss Number, Version 11.0: 27-27-26-01
• eCl@ss Number, Version 9.0: 27-27-26-01
• ETIM Number, Version 7.0: EC000030
• ETIM Number, Version 6.0: EC000030

Approvals and Regulations:

• Certificates: cULus, CCC
• Standards: EN IEC 60947-5-1

General Data:

• Housing design: Standard design
• Actuator type according to EN 50047: e
• Housing material: Plastic, glass-fiber-reinforced thermoplastic, zinc die-cast, chromated
• Material of active surfaces: Metal
• Gross weight: 92 g

General Features:

• Safety functions: Yes
• Number of auxiliary contacts: 1
• Number of safety contacts: 1

Safety Consideration:

• Standards: EN ISO 13849-1
• B10D NC (normally closed): 20,000,000 operations
• B10D NO (normally open): 1,000,000 operations
• Note: At 10% Ie and resistive load
• Service life: 20 years

Mechanical Data:

• Actuator element: Roller lever K200
• Roller material: Plastic
• Mechanical life, min.: 10,000,000 operations
• Actuation force, min.: 7.5 N
• Positive opening force, min.: 40 N
• Actuation speed:
- Minimum: 10 mm/min
- Maximum: 1 m/s

• Actuation torque, min.: 0.2 Nm
• Positive opening torque: 0.6 Nm

Mechanical Data – Connection Technology:

• Cable length: 2 m
• Connection type: Connection cable, 4-core
• Conductor cross-section: 0.5 mm²
• Cable type: LiYY
• Connection (mechanical): Bottom

Mechanical Dimensions:

• Sensor length: 16.6 mm
• Sensor width: 31 mm
• Sensor height: 83.6 mm
• Roller diameter: 12 mm

Environmental Conditions:

• Protection rating: IP66, IP66
• Ambient temperature: -30 ... +80 °C
• Protection class: II

Environmental Conditions – Insulation Values:

• Rated insulation voltage Ui: 300 V
• Rated impulse withstand voltage Uimp: 4 kV
• Pollution degree: 3

Electrical Data:

• Conditional rated short-circuit current: 400 A
• Utilization categories:
- AC-15: 240 VAC
- DC-13: 24 VDC / 1.5 A

• Switching element: 1 NO, 1 NC
• Switching principle: Snap action
• Bounce time, max.: 3 ms
• Maximum switching frequency: 5,000 /h
• Switching time, max.: 5.5 ms
• Contact material (electrical): Silver

Note:

The specified data has been carefully verified. Images may differ from the original. Further technical details can be found in the operating instructions. Technical changes and errors are subject to change.
Type: PS116-Z11-L200-K200
