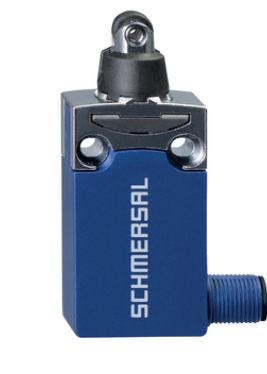

Schmersal PS116-Z11-STR-R200 position switch art.Rollendruckb.103006599

The PS116-Z11-STR-R200 position switch is a robust and versatile safety solution for industrial applications. Its housing, made of glass fiber-reinforced thermoplastic and chromated zinc die-cast, ensures high durability and stability. The switch is equipped with an R200 roller plunger, with a plastic roller for precise actuation. With IP66 IP66 protection, the switch is resistant to dust and water ingress. Its safety and auxiliary contacts make it ideal for applications requiring high reliability and safety. The PS116-Z11-STR-R200 is a reliable choice for industrial control systems, offering long service life and flexible connection technology.

Technical Data:

Product Designation:

• PS116-Z11-STR-R200

Article Number:

• 103006599

EAN:

• 4030661442488

Certifications and Standards:

• cULus, CCC
• EN IEC 60947-5-1, EN ISO 13849-1

Housing Design:

• Standard design
• Actuator Type: c according to EN 50047

Materials:

• Housing: Plastic, glass fiber-reinforced thermoplastic, zinc die-cast, chromated
• Active Surfaces: Metal
• Roller: Plastic

Gross Weight:

• 60 g

Features:

• Safety Functions: Yes
• Number of Safety Contacts: 1
• Number of Auxiliary Contacts: 1

Mechanical Data:

• Actuator: R200 roller plunger
• Mechanical Lifespan: min. 10,000,000 cycles
• Actuation Force: min. 10 N
• Positive Opening Force: min. 40 N
• Actuation Speed: 10 mm/min to 0.5 m/s
• Note: Speed at a vertical approach angle of 30°
• Actuation Torque: min. 0.2 Nm
• Positive Opening Torque: 0.6 Nm

Electrical Data:

• Voltage, Operating Category AC-15: 240 VAC
• Voltage, Operating Category DC-13: 24 VDC
• Current, Operating Category DC-13: 1.5 A
• Switching Element: 1 NO, 1 NC
• Switching Principle: Snap-action
• Maximum Switching Frequency: 5,000 /h
• Bounce Time: max. 3 ms
• Switching Time: max. 5.5 ms
• Contact Material: Silver

Connection Technology:

• Connection Type: M12 connector, 4-pin
• Connector Position: Right
• Conductor Cross-section: 0.5 mm²

Dimensions:

• Length: 16.6 mm
• Width: 31 mm
• Height: 74.1 mm
• Roller Diameter: 9.5 mm

Environmental Conditions:

• Protection Class: IP66, IP66
• Ambient Temperature: -30 °C to +80 °C
• Protection Class: II

Insulation Ratings:

• Rated Insulation Voltage Ui: 300 V
• Rated Impulse Withstand Voltage Uimp: 4 kV
• Pollution Degree: 3

Type: PS116-Z11-STR-R200
