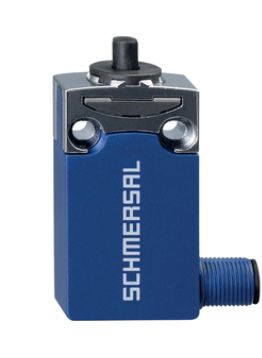

Schmersal PS116-T11-STR-S200 position switch art. pressure bolt 103006598
|
48,26 EUR |
|||||||||||
|
( 57,43 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1337716 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103006598 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103006598:
The PS116-T11-STR-S200 position switch is a compact and versatile safety switch designed for industrial applications. With a housing made of glass fiber-reinforced thermoplastic and chromated zinc die-cast, it offers high stability and durability. Equipped with a S200 plunger as the actuator and an IP66 IP66 protection rating, the switch is well-protected against dust, water, and mechanical impacts. Its safety and auxiliary contacts enable flexible integration into various control systems. With its long mechanical and electrical lifespan, the PS116-T11-STR-S200 provides reliable performance for safety-critical operations.
Technical Data:
Product Designation:- PS116-T11-STR-S200
Article Number:
- 103006598
EAN:
- 4030661442471
Certifications and Standards:
- cULus, CCC
- EN IEC 60947-5-1, EN ISO 13849-1
Housing Design:
- Standard design
- Actuator Type: B according to EN 50047
Materials:
- Housing: Plastic, glass fiber-reinforced thermoplastic, zinc die-cast, chromated
- Active Surfaces: Metal
Gross Weight:
- 65 g
Features:
- Safety Functions: Yes
- Number of Safety Contacts: 1
- Number of Auxiliary Contacts: 1
Mechanical Data:
- Actuator: S200 plunger
- Mechanical Lifespan: min. 10,000,000 cycles
- Actuation Force: min. 10 N
- Positive Opening Force: min. 40 N
- Actuation Speed: 60 mm/min to 0.5 m/s
- Positive Opening Torque: 0.6 Nm
Electrical Data:
- Voltage, Operating Category AC-15: 240 VAC
- Voltage, Operating Category DC-13: 24 VDC
- Current, Operating Category DC-13: 1.5 A
- Switching Element: 1 NO, 1 NC
- Switching Principle: Slow-action
- Maximum Switching Frequency: 5,000 /h
- Bounce Time: max. 3 ms
- Switching Time: max. 5.5 ms
- Contact Material: Silver
Connection Technology:
- Connection Type: M12 connector, 4-pin
- Connector Position: Right
- Conductor Cross-section: 0.5 mm²
Dimensions:
- Length: 16.6 mm
- Width: 31 mm
- Height: 64 mm
Environmental Conditions:
Insulation Ratings:
- Rated Insulation Voltage Ui: 300 V
- Rated Impulse Withstand Voltage Uimp: 4 kV
- Pollution Degree: 3
Type: PS116-T11-STR-S200
Questions & answers
What is the delivery time of Schmersal PS116-T11-STR-S200 position switch art. pressure bolt 103006598?
The article Schmersal PS116-T11-STR-S200 position switch art. pressure bolt 103006598 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103006598 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal PS116-T11-STR-S200 position switch art. pressure bolt 103006598 always at the best possible price. We can give you a discount of 2% on Schmersal PS116-T11-STR-S200 position switch art. pressure bolt 103006598 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal PS116-T11-STR-S200 position switch art. pressure bolt 103006598 we can offer you a price of 46,81 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
