Schmersal rope system complete 50m 103003631
|
151,21 EUR 157,79 EUR |
|
|
( 179,94 EUR incl. VAT ) ≈ £128.53 | ≈ $169.81 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1425916 |
|---|---|
| Mfg Part No: | 103003631 |
| Weight: | 0.123 kg |
| Type: | SEILEINRICHTUNG KPL. WIRE ROPE COMPL.50M |
Product information for Schmersal 103003631:

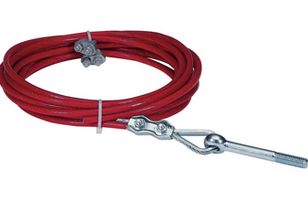

The pull rope is made of PVC-coated steel cable with a length of 50 meters and a diameter of 5 mm. The additional PVC coating provides corrosion protection and increases the durability of the rope, even in demanding environments. The rope clamp, thimble, and eye bolt with hex nut are made of stainless steel (NIRO), ensuring high resistance to environmental influences and long service life.
This set is ideal for use in industrial safety applications, especially in areas where manual pull activation is required. The included mounting materials make it easy to tension and securely fix the rope.
Technical Data (English):
Product Type Designation:
- PWR-50M-SET
Item Number (Order Number):
- 103003631
EAN (European Article Number):
- 4030661485416
eCl@ss Number:
- Version 12.0: 23-17-06-01
- Version 11.0: 23-17-06-01
- Version 9.0: 23-17-06-01
ETIM Number:
- Version 7.0: EC011141
- Version 6.0: EC001471
General Data:
- Gross Weight: 2.569 g
Mechanical Data – Dimensions:
- PVC Sheath Thickness: 2 mm
- Length of Pull Rope: 50 m
- Diameter of Pull Rope: 5 mm
Scope of Delivery:
- 2x Rope Clamp 3 mm, Stainless Steel (NIRO)
- 1x Thimble 3 mm, Stainless Steel (NIRO)
- 1x Eye Bolt M8x70 and Hex Nut, Stainless Steel (NIRO)
- 1x Pull Rope, 50 m
