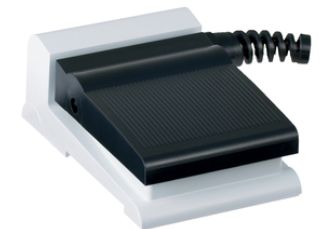

Schmersal NKF1-10Z-B-2M foot switch 103003077
|
53,38 EUR |
|
|
( 63,52 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2128042 |
|---|---|
| Mfg Part No: | 103003077 |
| Weight: | 0.12 kg |
Product information for Schmersal 103003077:
The foot switch has a normally open (NO) contact and operates on a snap-action switching principle, ensuring fast and reliable activation. It is built for at least 1 million switching cycles, ensuring long-lasting performance.
The housing is colored in RAL 9006 (white aluminum), while the pedal is finished in RAL 9005 (black). The switch comes with a 2-meter connection cable, allowing flexible installation options.
The NKF1-10Z-B-2M is rated for voltages up to 240 VAC and currents up to 2.5 A in AC-15 operation, as well as 24 VDC and 1 A in DC-13 operation.
Technical Data – NKF1-10Z-B-2M:
Order Information:
Product Type Designation: NKF1-10Z-B-2M
Article Number: 103003077
EAN: 4030661427805
Approvals and Standards:
cULus
EN IEC 60947-5-1
Material and Weight:
Housing Material: Impact-resistant thermoplastic
Pedal Material: ABS thermoplastic
Housing Color: RAL 9006 (White Aluminum)
Pedal Color: RAL 9005 (Black)
Gross Weight: 441 g
Features:
Number of Normally Open (NO) Contacts: 1
Mechanical Data:
Minimum Mechanical Lifespan: 1,000,000 switching cycles
Connection Technology:
Cable Length: 2 m
Connection Type: Connection cable
Dimensions:
Width: 77 mm
Height: 49 mm
Depth: 123 mm
Environmental Conditions:
Protection Rating: IP67
Operating Temperature: -25 °C to +60 °C
Electrical Data:
Voltage, AC-15 Category: 240 VAC
Current, AC-15 Category: 2.5 A
Voltage, DC-13 Category: 24 VDC
Current, DC-13 Category: 1 A
Switching Element:
Normally Open (NO) Contact
Switching Principle: Snap-action switching
Type: NKF1-10Z-B-2M
