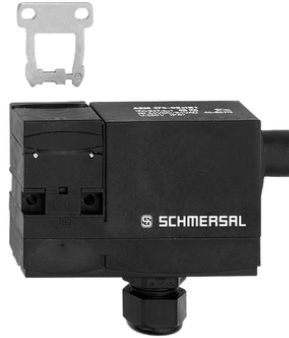

Schmersal AZM 170SK-11/11ZRI B1-2197 24VAC/DC safety locking device 103001571

Order Details:

• Product Type Designation: AZM 170SK-11/11ZRI-B1-2197 24VAC/DC
• Article Number (Order Number): 103001571
• EAN (European Article Number): 4030661422947
• eCl@ss Number, Version 12.0: 27-27-26-03
• eCl@ss Number, Version 11.0: 27-27-26-03
• eCl@ss Number, Version 9.0: 27-27-26-03
• ETIM Number, Version 7.0: EC002593
• ETIM Number, Version 6.0: EC002593

Approvals - Standards:

• Certificates: IFA, cULus, CCC
• Standards: BG-GS-ET-19, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding: Individual coding
• Coding level according to EN ISO 14119: high
• Operating principle: electromechanical
• Housing material: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing
• Actuator material: Stainless steel
• Gross weight: 369 g

General Data - Features:

• Current principle: Yes
• Auxiliary release: Yes
• Number of approach directions: 2
• Number of auxiliary contacts: 2
• Number of safety contacts: 2

Safety Considerations:

• Performance Level: up to c
• Category: 1
• B10D NC contact: 2,000,000 operations
• Service life: 20 years
• Note: Usable with single-channel mechanics and adequate tamper protection.
• Performance Level for dual-channel use: up to d
• Category: 3

Mechanical Data:

• Minimum actuation radius: 140 mm
• Mechanical service life, minimum: 1,000,000 operations
• Retaining force FZh according to EN ISO 14119: 1,000 N
• Maximum retaining force Fmax: 1,300 N
• Latching force: 30 N
• Forced opening travel: 11 mm
• Minimum forced opening force per NC contact: 8.5 N
• Minimum forced opening force: 17 N
• Maximum actuation speed: 2 m/s
• Mounting: Screws (2x M5, tightening torque: 0.7 - 1 Nm, Torx T10)

Mechanical Data - Connection Technology:

• Cable entry: 1 x M20 x 1.5
• Connection type: Screw terminals
• Connection cross-section: 0.25 - 1.5 mm²
• Permissible type of cable: Rigid single-core, rigid multi-core, flexible

Mechanical Data - Dimensions:

• Sensor length: 30 mm
• Sensor width: 108 mm
• Sensor height: 84 mm

Environmental Conditions:

• Protection class: IP67
• Operating temperature: -25 ... +60 °C
• Storage and transport temperature: +25 ... +85 °C
• Protection class: II

Electrical Data:

• Thermal continuous current: 6 A
• Rated control supply voltage: 24 VAC/DC
• Maximum electrical power consumption: 12 W
• Switching element: Magnet: 1 NO, 1 NC; Actuator: 1 NO, 1 NC
• Switching principle: Slow-action switch with forced opening NC
• Maximum switching frequency: 1,000 /h

Scope of Delivery:

• Actuator cannot be reordered!
• Slot closure
• Actuator included in delivery.
• Note: Additional lateral auxiliary release, manual release with triangular key M3 (included in delivery).
