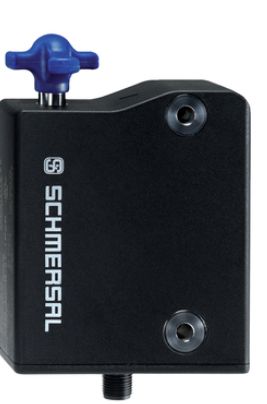

Schmersal AZM 300Z-I2-ST-SD2P-A safety locking device 103001455
|
455,26 EUR |
|||||||||||
|
( 541,76 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1134101 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103001455 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103001455:
Product Description in English:
The AZM300Z-I2-ST-SD2P-A safety interlock switch combines state-of-the-art RFID technology with individually learnable and reconfigurable coding, ensuring the highest level of tamper resistance and flexibility. With an integrated serial diagnostics function (SD), this device delivers advanced communication and monitoring capabilities tailored for safety-critical industrial applications.
Built with a robust glass-fiber reinforced thermoplastic housing and certified to IP66, IP66, and IP69 protection classes, this switch is highly resistant to harsh environments, including hygienic-sensitive areas. It is designed for applications requiring the highest safety standards up to Performance Level e (interlocking function) and d (latching function).
Technical Data:
Product Type Designation:
- AZM300Z-I2-ST-SD2P-A
Order Number:
- 103001455
EAN:
- 4030661426044
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Individually learnable coding
- RFID Frequency: 125 kHz
- Housing Material: Glass-fiber reinforced thermoplastic
- Gross Weight: 585 g
Safety Consideration:
- Interlocking Function: PL e, Category 4, SIL 3
- Latching Function: PL d, Category 2, SIL 2
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifespan: 1,000,000 cycles
- Holding Force: 1,150 N (FZh), max. 1,500 N (Fmax)
- Latching Force: Adjustable (25 N / 50 N)
- Dimensions: 120 mm x 87.5 mm x 35 mm
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- Secure Digital Outputs: 2, short-circuit proof, p-switching
- Magnet Control: -3 V to 5 V (Low), 15 V to 30 V (High)
Environmental Conditions:
- Protection Class: IP66, IP66, IP69
- Operating Temperature: +0 ... +60 °C
- Relative Humidity: Max. 93 %, non-condensing
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: AZ/AZM300-B1
Notes:
- Optional mounting plate MP-AZ/AZM300-1 available for flush doors.
- Suitable for glass and Makrolon doors with mounting kit MS-AZ/AZM300-B1-1.
Type: AZM 300Z-I2-ST-SD2P-A
