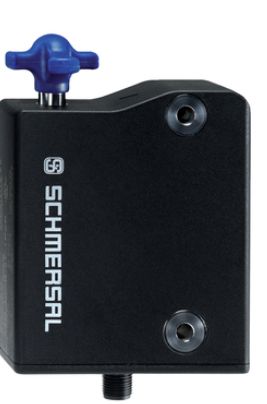

Schmersal AZM 300Z-I2-ST-1P2P-A safety locking device 103001454
|
468,02 EUR |
|||||||||||
|
( 556,94 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1134102 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103001454 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103001454:
Product Description in English:
The AZM300Z-I2-ST-1P2P-A safety interlock switch offers individually learnable coding based on RFID technology, ensuring high tamper resistance. It is ideal for applications requiring high safety standards and complies with up to Performance Level e (interlocking function) and d (latching function). Built from glass-fiber reinforced thermoplastic and certified with IP66, IP66, and IP69 protection ratings, this switch is suitable for demanding and hygienic environments.
Equipped with features such as interlock monitoring, adjustable latching force (25 N / 50 N), integrated diagnostics, and the capability to chain multiple devices, this switch provides a versatile and reliable safety solution.
Technical Data:
Product Type Designation:
- AZM300Z-I2-ST-1P2P-A
Order Number:
- 103001454
EAN:
- 4030661426020
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Individually learnable coding
- RFID Frequency: 125 kHz
- Housing Material: Glass-fiber reinforced thermoplastic
- Gross Weight: 550 g
Safety Consideration:
- Interlocking Function: PL e, Category 4, SIL 3
- Latching Function: PL d, Category 2, SIL 2
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifespan: 1,000,000 cycles
- Holding Force: 1,150 N (FZh), max. 1,500 N (Fmax)
- Latching Force: Adjustable (25 N / 50 N)
- Dimensions: 120 mm x 87.5 mm x 35 mm
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- Secure Digital Outputs: 2, short-circuit proof, p-switching
- Rated Operating Current: 800 mA
Environmental Conditions:
- Protection Class: IP66, IP66, IP69
- Operating Temperature: +0 ... +60 °C
- Relative Humidity: Max. 93 %, non-condensing
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: AZ/AZM300-B1
Notes:
- Optional mounting plate MP-AZ/AZM300-1 available for flush doors.
- Suitable for glass and Makrolon doors with mounting kit MS-AZ/AZM300-B1-1.
Type: AZM 300Z-I2-ST-1P2P-A
Questions & answers
What is the delivery time of Schmersal AZM 300Z-I2-ST-1P2P-A safety locking device 103001454?
The article Schmersal AZM 300Z-I2-ST-1P2P-A safety locking device 103001454 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103001454 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 300Z-I2-ST-1P2P-A safety locking device 103001454 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 300Z-I2-ST-1P2P-A safety locking device 103001454 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 300Z-I2-ST-1P2P-A safety locking device 103001454 we can offer you a price of 461,00 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
