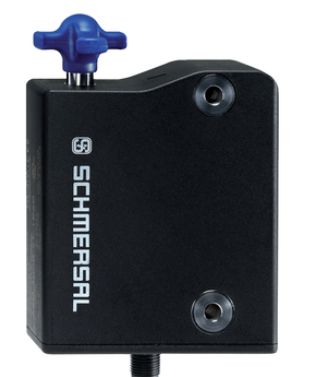

Schmersal AZM 300Z-ST-1P2P-A safety locking device 103001450
|
455,26 EUR |
|
|
( 541,76 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1134104 |
|---|---|
| Mfg Part No: | 103001450 |
| Weight: | 0 kg |
Product information for Schmersal 103001450:
Product Description in English:
The AZM300Z-ST-1P2P-A safety interlock switch with universal coding is an ideal solution for demanding safety applications. Utilizing RFID technology, it offers a high level of tamper protection and is suitable for applications requiring up to Performance Level e (interlocking function) and d (latching function). Its robust design, adjustable latching force (25 N/50 N), and ability to chain up to 31 devices make it especially versatile and reliable.
Constructed with glass-fiber reinforced thermoplastic, this switch meets IP66, IP66, and IP69 protection standards, making it suitable for hygienic environments. With extensive diagnostic and safety features, the AZM300Z-ST-1P2P-A is an essential component of modern safety systems.
Technical Data:
Product Type Designation:
- AZM300Z-ST-1P2P-A
Order Number:
- 103001450
EAN:
- 4030661426068
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Universal Coding
- RFID Frequency: 125 kHz
- Housing Material: Glass-fiber reinforced thermoplastic
- Gross Weight: 550 g
Safety Consideration:
- Interlocking Function: PL e, Category 4, SIL 3
- Latching Function: PL d, Category 2, SIL 2
- Service Life: 20 years
Mechanical Data:
- Holding Force: 1,150 N (FZh), max. 1,500 N (Fmax)
- Latching Force: Adjustable (25 N / 50 N)
- Dimensions: 120 mm x 87.5 mm x 35 mm
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- Secure Digital Outputs: 2, short-circuit proof, p-switching
- Diagnostic Output: Yes
- Rated Operating Current: 800 mA
Environmental Conditions:
- Protection Class: IP66, IP66, IP69
- Operating Temperature: +0 ... +60 °C
- Relative Humidity: Max. 93 %, non-condensing
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: AZ/AZM300-B1
Notes:
- Optional mounting plate MP-AZ/AZM300-1 available for flush doors.
- Suitable for glass and Makrolon doors with mounting kit MS-AZ/AZM300-B1-1.
Type: AZM 300Z-ST-1P2P-A
