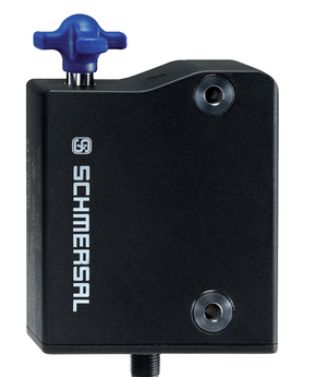

Schmersal AZM 300Z-ST-SD2P safety locking device 103001436
|
468,02 EUR |
|||||||||||
|
( 556,94 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1134090 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103001436 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103001436:
Product Description in English:
The AZM300Z-ST-SD2P safety interlock switch provides a secure and innovative solution for industrial applications. Equipped with RFID technology and universal coding, this switch ensures tamper-proof operation and meets the highest safety standards, including Performance Level e, Category 4, and SIL 3. The integrated serial diagnostics (SD) enable precise monitoring and error detection, while the series connection of up to 31 devices simplifies installation and maintenance significantly.
Its robust construction with glass fiber-reinforced plastic ensures durability and resistance to harsh environmental conditions. Flexible installation is achieved with three approach directions and adjustable latching force (25 N/50 N). With IP66, IP66, and IP69 protection ratings, this switch is ideal for hygiene-critical applications such as in the food and pharmaceutical industries.
Technical Data:
Product Type Designation:
- AZM300Z-ST-SD2P
Order Number:
- 103001436
EAN:
- 4030661426075
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Universal Coding
- RFID Frequency: 125 kHz
- Housing Material: Glass fiber-reinforced thermoplastic
- Gross Weight: 550 g
Safety Consideration:
- Performance Level: e
- Category: 4
- Safety Integrity Level (SIL): 3
- Service Life: 20 years
Mechanical Data:
- Holding Force: 1,150 N (FZh), max. 1,500 N (Fmax)
- Latching Force: Adjustable (25 N / 50 N)
- Dimensions: 120 mm x 87.5 mm x 35 mm
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- Secure Digital Outputs: 2, short-circuit proof, p-switching
- Serial Diagnostics: Supports series connection of up to 31 devices
- Rated Operating Current: 800 mA
Environmental Conditions:
- Protection Class: IP66, IP66, IP69
- Operating Temperature: +0 ... +60 °C
- Relative Humidity: Max. 93 %, non-condensing
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: AZ/AZM300-B1
Notes:
- Optional mounting plate MP-AZ/AZM300-1 available for flush doors.
- Suitable for glass and Makrolon doors with mounting kit MS-AZ/AZM300-B1-1.
Type: AZM 300Z-ST-SD2P
