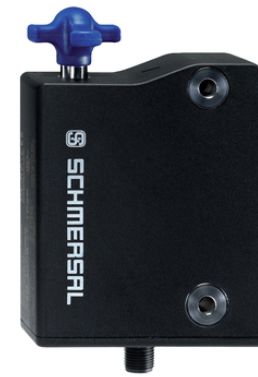

Schmersal Sicherheitszuhaltuhaltung, AZM300Z ST 1P2P
|
455,26 EUR |
|||||||||||
|
( 541,76 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 189889 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103001435 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103001435:
The device supports multiple safety functions, including power-to-lock principle, interlock monitoring, cross-short detection, and series connection. An integrated LED indicator provides precise information on operating status, faults, and power supply. The safety outputs are short-circuit proof and certified for high safety requirements according to EN ISO 13849-1 and EN IEC 61508. With its compact design, flexible mounting options, and universal application, the AZM300Z-ST-1P2P is the optimal choice for modern safety systems.
Technical Data:
Ordering Details:
- Product Type: AZM300Z-ST-1P2P
- Part Number: 103001435
- EAN: 4030661426051
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
Approvals:
- Certifications: TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Universal Coding
- RFID Frequency Band: 125 kHz
- Housing Material: Plastic, glass-fiber reinforced
- Gross Weight: 610 g
Mechanical Properties:
- Mechanical Lifespan: ≥ 1,000,000 operations
- Holding Force: 1,150 N (FZh per EN ISO 14119)
- Latching Force: Adjustable to 25 N or 50 N
- Dimensions: 120 x 87.5 x 35 mm
Electrical Properties:
- Operating Voltage: 24 VDC -15 % / +10 %
- Safety Outputs: 2 (short-circuit proof, p-switching)
- Safety Category: up to PL e, SIL 3
- Maximum Switching Frequency: 0.5 Hz
Environmental Conditions:
- Protection Rating: IP66, IP66, IP69
- Operating Temperature: 0 °C to +60 °C
- Relative Humidity: Max. 93 % (non-condensing)
Accessories:
- Recommended Actuator: AZ/AZM300-B1
- Optional Accessories: Mounting Plate MP-AZ/AZM300-1, Mounting Kit MS-AZ/AZM300-B1-1
Scope of Delivery:
- Safety switch (without actuator)
Notes:
- For flush-mounted doors, the MP-AZ/AZM300-1 mounting plate is suitable.
- Optional mounting kit available for glass and Makrolon doors.
- Safety outputs can be reactivated without needing to open the safety guard.
Type: AZM300Z-ST-1P2P
Questions & answers
What is the delivery time of Schmersal Sicherheitszuhaltuhaltung, AZM300Z ST 1P2P?
The article Schmersal Sicherheitszuhaltuhaltung, AZM300Z ST 1P2P is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103001435 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal Sicherheitszuhaltuhaltung, AZM300Z ST 1P2P always at the best possible price. We can give you a discount of 2% on Schmersal Sicherheitszuhaltuhaltung, AZM300Z ST 1P2P if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal Sicherheitszuhaltuhaltung, AZM300Z ST 1P2P we can offer you a price of 448,43 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
