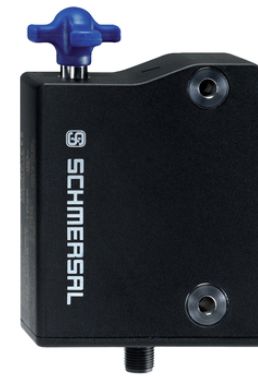

Schmersal AZM 300B-I2-ST-1P2P-A safety locking device 103001427
|
468,02 EUR |
|||||||||||
|
( 556,94 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1134108 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103001427 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103001427:
Product Description in English:
The AZM300B-I2-ST-1P2P-A safety interlock switch combines advanced RFID technology with re-teachable individual coding. This feature provides a high level of tamper protection, while its robust design with glass fiber-reinforced plastic ensures a long lifespan and durability in harsh industrial environments.
The switch meets the highest safety standards with Performance Level e, Category 4, and Safety Integrity Level (SIL) 3. The safety outputs are short-circuit proof and allow for the safe series connection of up to 31 devices. Its universal connectivity via an 8-pin M12 connector ensures easy integration into existing systems.
Key features include flexible applications with three approach directions and adjustable latching force (25 N/50 N). LED indicators provide clear operational diagnostics.
Technical Data:
Product Type Designation:
- AZM300B-I2-ST-1P2P-A
Order Number:
- 103001427
EAN:
- 4030661425849
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Individual coding, re-teachable
- RFID Frequency: 125 kHz
- Housing Material: Glass fiber-reinforced thermoplastic
- Gross Weight: 550 g
Safety Consideration:
- Performance Level: e
- Category: 4
- Safety Integrity Level (SIL): 3
- Service Life: 20 years
Mechanical Data:
- Holding Force: 1,150 N (FZh), max. 1,500 N (Fmax)
- Latching Force: Adjustable (25 N / 50 N)
- Dimensions: 120 mm x 87.5 mm x 35 mm
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- Secure Digital Outputs: 2, short-circuit proof, p-switching
- Rated Operating Voltage: 24 VDC
- Rated Operating Current: 800 mA
Environmental Conditions:
- Protection Class: IP66, IP66, IP69
- Operating Temperature: +0 ... +60 °C
- Relative Humidity: Max. 93 %, non-condensing
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: AZ/AZM300-B1
Notes:
- Optional mounting plate MP-AZ/AZM300-1 available for flush doors.
- Suitable for glass and Makrolon doors with mounting kit MS-AZ/AZM300-B1-1.
Type: AZM 300B-I2-ST-1P2P-A
Questions & answers
What is the delivery time of Schmersal AZM 300B-I2-ST-1P2P-A safety locking device 103001427?
The article Schmersal AZM 300B-I2-ST-1P2P-A safety locking device 103001427 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103001427 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 300B-I2-ST-1P2P-A safety locking device 103001427 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 300B-I2-ST-1P2P-A safety locking device 103001427 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 300B-I2-ST-1P2P-A safety locking device 103001427 we can offer you a price of 461,00 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
