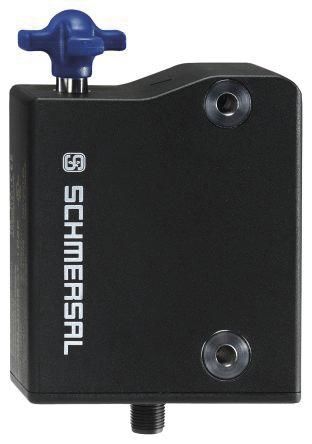

Schmersal AZM 300B-ST-1P2P safety locking device 103001411
|
468,02 EUR |
|||||||||||
|
( 556,94 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1134111 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103001411 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103001411:
Product Description in English:
The AZM300B-ST-1P2P is a highly advanced RFID safety interlock switch designed to provide maximum safety and flexibility in industrial applications. With universal coding and a robust construction of glass fiber-reinforced thermoplastic, this model is ideal for demanding operating conditions. Rated IP66, IP66, and IP69, the switch is highly resistant to dust, water, and chemical influences.
It delivers powerful safety features with two secure digital outputs and supports applications up to SIL3, Performance Level e, and Category 4. The integrated latching function with adjustable force (25 N or 50 N) enhances versatility. With a mechanical lifespan of at least 1 million switching cycles, the AZM300B-ST-1P2P ensures long-term reliability.
Featuring an 8-pin M12 connector and simple mounting, the switch is easy to install. It is compatible with various accessories, such as the optional actuator AZ/AZM300-B1 for different door types.
Technical Data:
Product Type Designation:
- AZM300B-ST-1P2P
Order Number:
- 103001411
EAN:
- 4030661425900
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Universal
- RFID Frequency: 125 kHz
- Housing Material: Glass fiber-reinforced thermoplastic
- Gross Weight: 600 g
Safety Consideration:
- Performance Level: e
- Category: 4
- Safety Integrity Level (SIL): 3
- Service Life: 20 years
Mechanical Data:
- Holding Force: 1,150 N (FZh), max. 1,500 N (Fmax)
- Latching Force: Adjustable (25 N / 50 N)
- Dimensions: 120 mm x 87.5 mm x 35 mm
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- Secure Digital Outputs: 2, short-circuit-proof, p-switching
- Rated Operating Voltage: 24 VDC
- Rated Operating Current: 800 mA
Environmental Conditions:
- Protection Class: IP66, IP66, IP69
- Operating Temperature: +0 ... +60 °C
- Relative Humidity: Max. 93 %, non-condensing
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: AZ/AZM300-B1
Notes:
- Optional mounting plate MP-AZ/AZM300-1 available for flush doors.
- Suitable for glass and Makrolon doors with mounting kit MS-AZ/AZM300-B1-1.
Type: AZM 300B-ST-1P2P
