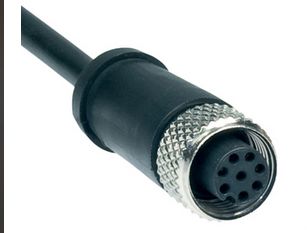

Schmersal A-K8P-M12-SG-10M-BK-1-XA-469 connector M12 8-pin 103001389
|
98,34 EUR |
|||||||||||
|
( 117,02 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331066 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103001389 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103001389:
Technical Data:
Product Type:
- A-K8P-M12-S-G-10M-BK-1-X-A-4-69-VA
Article Number:
- 103001389
EAN (European Article Number):
- 4030661482484
eCl@ss Classification:
- Version 12.0: 27-06-03-11
- Version 11.0: 27-06-03-11
- Version 9.0: 27-06-03-11
ETIM Classification:
- Version 7.0: EC001855
- Version 6.0: EC001855
General Data:
- Regulations: EN IEC 61076-2-101
- Gross Weight: 510 g
Properties:
- Suitable for Drag Chains: Yes
- Number of Cores: 8
Mechanical Data:
- Maximum Torque: 0.4 Nm
Connection Technology:
- Cable Length: 10 m
- Core Cross-Section: 0.21 mm²
- Cable Diameter: 5.9 mm
- Bending Radius (fixed): 5 x cable diameter
- Bending Radius (moving): 10 x cable diameter
- Cable Sheath Color: Black
- Cable Sheath Material: PVC
Connector on Side A:
- Connector Type: M12 Socket
- Design: Straight
- Connector Coding: A
- Connector Locking: Screw Lock
- Housing Material: Metal, V4A
- Grip Body Material: Plastic, TPU
- Grip Body Color: Black
Environmental Conditions:
- Protection Class: IP65, IP65, IP69K
- Ambient Temperature (Connector): -25 ... +90 °C
- Ambient Temperature (Fixed): -30 ... +105 °C
- Ambient Temperature (Moving): -10 ... +105 °C
Electrical Data:
- Rated Continuous Current: 2 A
- Rated Operating Voltage: 30 VAC / 30 VDC
- Rated Operating Current: 2,000 mA
Pin Assignment:
- PIN 1: Brown
- PIN 2: White
- PIN 3: Blue
- PIN 4: Black
- PIN 5: Grey
- PIN 6: Violet
- PIN 7: Red
- PIN 8: Pink
Type: A-K8P-M12-S-G-10M-BK-1-X-A-4-69-VA
Questions & answers
What is the delivery time of Schmersal A-K8P-M12-SG-10M-BK-1-XA-469 connector M12 8-pin 103001389?
The article Schmersal A-K8P-M12-SG-10M-BK-1-XA-469 connector M12 8-pin 103001389 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103001389 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal A-K8P-M12-SG-10M-BK-1-XA-469 connector M12 8-pin 103001389 always at the best possible price. We can give you a discount of 2% on Schmersal A-K8P-M12-SG-10M-BK-1-XA-469 connector M12 8-pin 103001389 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal A-K8P-M12-SG-10M-BK-1-XA-469 connector M12 8-pin 103001389 we can offer you a price of 96,86 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
