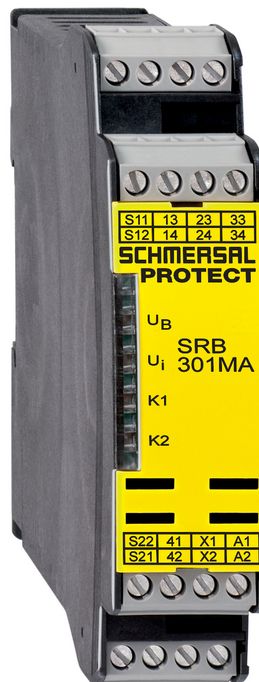

Schmersal SRB 301MA-24V protective door monitor 101212415

Order Data:

• Replaces Article Number: 101215369
• Product Type: SRB301MA-24V
• Article Number (Order Number): 101212415
• EAN (European Article Number): 4030661446561

• Version 12.0: 27-37-18-19
• Version 11.0: 27-37-18-19
• Version 9.0: 27-37-18-19

ETIM Number:

• Version 7.0: EC001449
• Version 6.0: EC001449

Note:

• Discontinued Product

Approvals - Regulations:

• Certificates:
- TÜV
- cULus


General Data:

• Regulations:
- EN IEC 62061
- EN ISO 13849-1
- EN IEC 60947-5-1
- EN IEC 60947-5-3
- EN IEC 60947-5-5
- EN IEC 61508
- EN IEC 60204-1
- EN IEC 60947-1


• Environmental Condition: EN 60068-2-78
• Housing Material: Plastic, glass-fiber reinforced thermoplastic, ventilated
• Gross Weight: 250 g

General Data - Features:

• Electronic Fuse: Yes
• Wire Break Detection: Yes
• Cross-Short Circuit Detection: Yes
• Start Input: Yes
• Feedback Loop: Yes
• Reset Edge Detection: Yes
• Ground Fault Detection: Yes
• Integrated Status Display: Yes
• Number of Auxiliary Contacts: 1
• Number of LEDs: 4
• Number of NC Contacts: 2
• Number of Safety Contacts: 3

Safety Consideration:

• Regulations:
- EN IEC 60947-5-1
- EN IEC 61508


• Stop Category: 0
• Performance Level, Stop 0, up to: e
• Category, Stop 0: 4
• Diagnostic Coverage (DC) Level, Stop 0: ≥ 99 %
• PFH Value, Stop 0: 2,00 x 10⁻⁸ /h
• Safety Integrity Level (SIL), Stop 0, suitable for applications in: 3
• Service Life: 20 Years
• Common Cause Failure (CCF), minimum: 65
