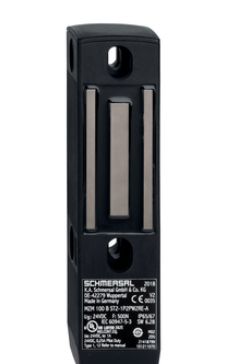

Schmersal MZM 100B-ST2-1P2PW2RE-A safety locking device 101211070
|
517,96 EUR |
|||||||||||
|
( 616,37 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320575 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101211070 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101211070:
Product Description in English:
The MZM 100 B ST2-1P2PW2RE-A is an advanced safety interlock switch that utilizes an inductive operating principle with universal coding. Designed for secure monitoring and locking of protective devices, it meets the highest safety and reliability standards. Its robust, glass-fiber-reinforced plastic housing and IP65 IP65 protection ratings ensure durability in demanding environments. With a holding force of up to 750 N and integrated diagnostic functions, this switch is versatile and easy to integrate into modern safety systems.
Technical Data:
Product Type Designation:
- MZM 100 B ST2-1P2PW2RE-A
Order Number:
- 101211070
EAN:
- 4030661389080
Certifications:
- TÜV
- cULus
- UKCA
Material Information:
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
General Properties:
- Coding Type: Universal Coding
- Coding Level: Low per EN ISO 14119
- Operating Principle: Inductive
- Safety Contacts: 2
- Latching Force: 30-100 N
- Integrated Status Display: Yes
Safety Considerations:
- Standards: EN ISO 13849-1, EN IEC 61508
- Performance Level: Up to PL e
- Category: Up to Cat. 4
- SIL: Suitable for SIL 3 applications
- Mechanical lifespan: ≥ 1,000,000 operations
- Service life: 20 years
Mechanical Data:
- Typical Holding Force: 750 N
- Maximum Holding Force: 500 N (guaranteed)
- Dimensions (L x W x H): 40 mm x 40 mm x 177.5 mm
- Mounting: 2 x M6 screws
Electrical Data:
- Operating Voltage: 24 VDC (-15 % / +10 %)
- Magnet Current Consumption (peak): 550 mA
- Safety Outputs: P-switching, short-circuit-proof
- Maximum Switching Frequency: 1 Hz
- Connection: M12, 8-pin connector
Environmental Conditions:
- Protection Class: IP65 IP65
- Ambient Temperature: -25 °C to +55 °C
- Maximum Relative Humidity: 95 % (non-condensing)
Features:
- Series connection of up to 31 devices with serial diagnostics
- LEDs for status display (operating condition, error, supply voltage)
- Suitable for sliding, removable, or rotating protective devices
Included Items:
- Actuator not included
Accessories:
- Recommended Actuator: MZM 100-B1.1
Notes:
- The protective device can be re-locked with the actuator in place without deactivating the safety outputs.
Type: MZM 100 B ST2-1P2PW2RE-A
Questions & answers
What is the delivery time of Schmersal MZM 100B-ST2-1P2PW2RE-A safety locking device 101211070?
The article Schmersal MZM 100B-ST2-1P2PW2RE-A safety locking device 101211070 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101211070 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal MZM 100B-ST2-1P2PW2RE-A safety locking device 101211070 always at the best possible price. We can give you a discount of 2% on Schmersal MZM 100B-ST2-1P2PW2RE-A safety locking device 101211070 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Schmersal MZM 100B-ST2-1P2PW2RE-A safety locking device 101211070 we can offer you a price of 510,19 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
