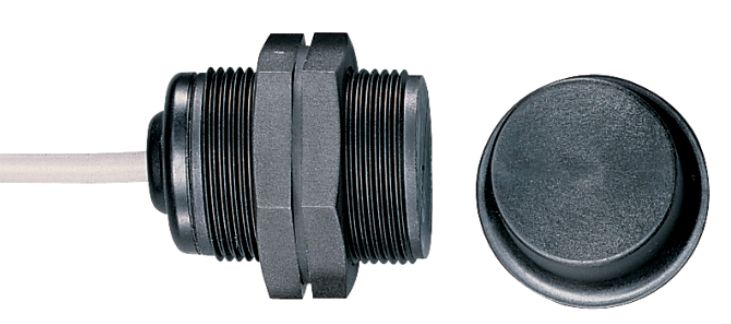

Schmersal BNS 303-12Z-2187 safety sensor 101209613
|
70,39 EUR |
|||||||||||
|
( 83,76 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1134674 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101209613 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101209613:
The BNS 303-12Z-2187 is a reliable magnetic safety sensor designed for applications with high safety requirements. Its robust fiberglass-reinforced thermoplastic housing and IP67 protection class make it an excellent choice for use in demanding environments.
The sensor operates with a magnetic actuator and provides two safety contacts (2 normally closed, NC) and one auxiliary contact (1 normally open, NO). With a secure switching distance of 5 mm (Sao) and a release distance of 15 mm (Sar), the BNS 303-12Z-2187 ensures precise and safe switching according to EN IEC 60947-5-3.
The connection technology includes a 1 m long PVC cable with a cross-section of 0.25 mm² (23 AWG). The compact design with an M30 ISO thread allows for easy installation. The sensor has a mechanical lifespan of at least 20 years and offers a maximum switching power of 10 W.
Technical Data:
Product Type Designation:
- BNS 303-12Z-2187
Order Number:
- 101209613
EAN:
- 4030661383323
eCl@ss Numbers:
- Version 12.0: 27-27-44-01
- Version 11.0: 27-27-24-02
- Version 9.0: 27-27-24-02
ETIM Numbers:
- Version 7.0: EC002544
- Version 6.0: EC002544
Approvals:
- cULus
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding Level: Low
- Operating Principle: Magnetic
- Housing Material: Fiberglass-reinforced thermoplastic
- Gross Weight: 90 g
Mechanical Data:
- Lifespan: 20 years
- Switching Distances: Sao: 5 mm, Sar: 15 mm
- Dimensions: ISO Thread M30, Length: 44 mm
Electrical Data:
- Switching Current: Maximum 0.4 A
- Switching Power: Maximum 10 W
- Contacts: 1 normally open (NO), 2 normally closed (NC)
- Switching Frequency: Maximum 5 Hz
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 ... +70 °C
Scope of Delivery:
- 2 Mounting Nuts M30 x 1.5
- Actuator not included.
Accessories:
- Recommended Actuators: BPS 300, BPS 303, BPS 303 SS
- Recommended Safety Control Device: SRB 301AN
Note:
- Contact symbols are represented for a closed safety enclosure.
- Identical contact assignments for versions with or without LED.
Type: BNS 303-12Z-2187
Questions & answers
What is the delivery time of Schmersal BNS 303-12Z-2187 safety sensor 101209613?
The article Schmersal BNS 303-12Z-2187 safety sensor 101209613 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101209613 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 303-12Z-2187 safety sensor 101209613 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 303-12Z-2187 safety sensor 101209613 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal BNS 303-12Z-2187 safety sensor 101209613 we can offer you a price of 69,33 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
