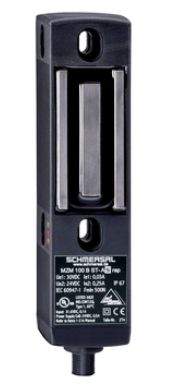

Schmersal MZM 100 ST-AS REMAP AS-i safety locking 101209553
|
543,95 EUR |
|||||||||||
|
( 647,30 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320652 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101209553 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101209553:
Product Description in English:
The MZM 100 ST-AS REMAP is an inductive safety guard locking switch with universal coding and an integrated AS-Interface (AS-i) Safety system. It ensures reliable locking of protective devices in industrial applications and is suitable for use in safety-critical areas. The switch features locking force adjustment, integrated LED status indicators, and extensive diagnostic functions via AS-i.
Thanks to its compact design and robust housing made of glass-fiber reinforced thermoplastic, the MZM 100 is suitable for use in harsh environments. The integrated AS-i interface allows for easy integration into existing safety networks.
Technical Data:
Product Type:- MZM 100 ST-AS REMAP
Order Number:
- 101209553
EAN:
- 4030661383217
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals - Regulations:
- TÜV
- cULus
- ASi-SaW
- UKCA
General Data:
- Coding: Universal Coding
- Operating Principle: Inductive
- Housing Material: Glass-fiber reinforced thermoplastic
- Reaction Time, max.: 150 ms
- Risk Time, max.: 150 ms
- Gross Weight: 628 g
Features:
- Operating Current Principle: Yes
- Guard Lock Monitoring: Yes
- Latching: Yes
- Safety Functions: Yes
- Integrated Status Indicator: Yes
Safety Consideration:
- Performance Level: e
- Category: 4
- PFH Value: 5.00 x 10⁻⁹ /h
- SIL (Safety Integrity Level): 3
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifespan: min. 1,000,000 switching cycles
- Holding Force: Typical 750 N, Guaranteed 500 N
- Latching Force: min. 30 N, max. 100 N
Connection Technology:
- Connection Type: M12, 4-pin plug, A-coding
Dimensions:
- Length: 40 mm
- Width: 40 mm
- Height: 179 mm
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 ... +55 °C
- Relative Humidity: 30 % to 95 % (non-condensing, non-freezing)
Electrical Data - AS-Interface:
- Rated Operating Voltage: 26.5 ... 31.6 VDC (reverse polarity protection)
- AS-i Current Consumption, max.: 100 mA
AS-Interface Specification:
- AS-i Version: V 2.1
- AS-i Profile: S-7.B.F.E
- AS-i IO Code: 0x7
- AS-i ID Code: 0xB
- AS-i ID Code1: 0xF
- AS-i ID Code2: 0xE
Auxiliary Power (Aux):
Status Indicator (LEDs):
Pin Assignment:
Included in Delivery:
Accessories:
Notes:
Type: MZM 100 ST-AS REMAP
