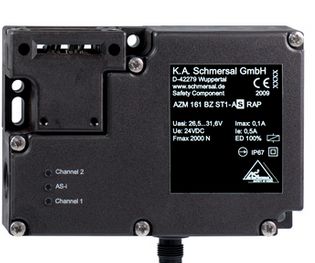

Schmersal AZM 161 B ST1-AS RP AS-i safety locking device 101209095
|
337,67 EUR |
|||||||||||
|
( 401,83 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1237251 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101209095 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101209095:
The housing is made of glass-fiber reinforced thermoplastic, making it highly durable and self-extinguishing. The switch operates on the closed-circuit principle and features integrated actuator monitoring, an auxiliary release, and an LED status display. The AZM 161 B ST1-AS RP provides a maximum locking force of 2,600 N and has a mechanical lifespan of at least 1 million operating cycles.
It complies with key safety standards such as EN ISO 13849-1 and is suitable for applications up to Performance Level d and Safety Integrity Level (SIL) 2. The connection is made via a 4-pin M12 plug.
This switch is ideal for applications that require high safety standards and reliable communication via AS-Interface.
Technical Data:
Product Type Designation:
AZM 161 B ST1-AS RP
Article Number (Order Number):
101209095
EAN (European Article Number):
4030661396453
eCl@ss Numbers:
Version 12.0: 27-27-26-03
Version 11.0: 27-27-26-03
Version 9.0: 27-27-26-03
ETIM Numbers:
Version 7.0: EC002593
Version 6.0: EC002593
Certificates:
TÜV
cULus
ASi-SaW
General Data:
Coding Level according to EN ISO 14119:
Low
Operating Principle:
Electromechanical
Material of Housing:
Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
Reaction Time, Maximum:
100 ms
Gross Weight:
450 g
Closed-Circuit Principle:
Yes
Actuator Monitoring:
Yes
Auxiliary Release:
Yes
Integrated Status Display:
Yes
Mechanical Data:
Mechanical Lifespan, Minimum:
1,000,000 operating cycles
Holding Force FZh according to EN ISO 14119:
2,000 N
Maximum Holding Force Fmax:
2,600 N
Mounting:
Screws (3x M6)
Connection Type:
M12 plug-in connector, 4-pin, A-coding
Environmental Conditions:
Degree of Protection:
IP67
Ambient Temperature:
-25 ... +60 °C
Relative Humidity:
30% to 95% (non-condensing, non-freezing)
Electrical Data - AS-Interface:
Rated Operating Voltage:
26.5 ... 31.6 VDC
AS-i Current Consumption:
max. 100 mA
AS-i Specification:
Safety-Slave
Version V 2.1
Included Items:
The actuator is not included in the delivery.
Note:
In case of failure, the switch can be manually unlocked with a triangular key M5 (available as an accessory).
Type: AZM 161 B ST1-AS RP
