Schmersal SMS 5-750-1000 safety mat 101208374
|
1.031,14 EUR |
|||||||||||
|
( 1.227,06 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320647 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101208374 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101208374:
Product Description in English:

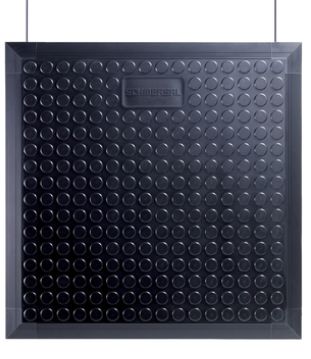

The SMS 5-750-1000 is a reliable safety mat designed for use in safety-critical areas. With a durable polyurethane surface and a Shore hardness of 78 ±5 A, it provides a long-lasting and maintenance-free solution, ideal for industrial use. The mat complies with EN ISO 13849-1 and EN ISO 13856-1 standards, achieving a performance level up to d and category 3.
Technical Data:
Product Type Designation:
- SMS 5-750-1000
Order Number:
- 101208374
EAN:
- 4030661380209
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-27-34-02
- eCl@ss Version 11.0: 27-27-34-02
- eCl@ss Version 9.0: 27-27-34-02
- ETIM Version 7.0: EC002887
- ETIM Version 6.0: EC002887
Certificates:
- TÜV
- cULus
Material and Weight:
- Surface Material: Polyurethane PUR
- Shore Hardness: 78 ±5 A
- Surface Weight: 26 kg/m²
- Gross Weight: 25,000 g
General Features:
- Cascadable: Yes
- Maintenance: Maintenance-free, annual inspection recommended
- Maximum Reaction Time: 25 ms
Safety Considerations:
- Performance Level: Up to d
- Category: 3
- Safety Integrity Level (SIL): 2
- Mechanical Lifespan: At least 1,000,000 switching cycles
- Service Life: 20 years
Mechanical Data:
- Actuation Force: 150 N (with round body Ø 80 mm)
- Inactive Edge: 42 mm
Mechanical Dimensions:
- Length: 1,000 mm
- Width: 750 mm
- Height: 14 mm
Connection Technology:
- Cable Length: 6 m
- Connection Type: Cable
- Conductor Cross-section: 0.34 mm² / 22 AWG
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: +0 °C to +55 °C
Chemical Resistance:
- Water: Resistant
- 10% Acids: Resistant
- 10% Alkalis: Resistant
- Gasoline: Resistant
- Oil: Resistant
Accessories:
- Recommended Safety Control Devices: - SRB 301HC/R
- SRB 301HC/T
- SRB-E-301ST
- PROTECT-SELECT-CC
Application:
The safety mat is ideal for industrial applications focused on protection and safety, such as in manufacturing areas, around machinery, or in hazard zones.Notes:
Regular inspection of the mat according to the operational manual is recommended.Type: SMS 5-750-1000
