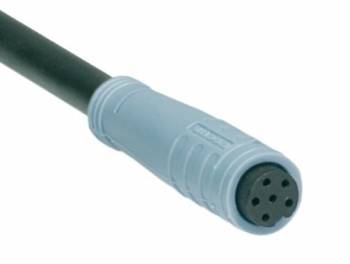

Schmersal A-K6P-M8-RG-5M-GY-1-XA-4 connector M8 6-pin 101206011
|
45,06 EUR |
|||||||||||
|
( 53,62 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320598 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101206011 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101206011:
Product Description in English:
The A-K6P-M8-R-G-5M-GY-1-X-A-4 connector with cable is a robust, industrial-grade connection solution designed for secure signal and power transmission. Equipped with an M8 coupling on side A, this connector features a latching mechanism to ensure a reliable connection. The cable length is 5 meters, and the gray PVC cable sheath provides excellent flexibility in both fixed and dynamic applications.
With IP65, IP65, and IP69 protection ratings, the connector is suitable for harsh environments. The operating temperature ranges from -40 °C to +90 °C, depending on the application. The connector has 6 poles and supports both AC and DC voltages up to 30 V, with a thermal continuous current of 1.5 A.
Technical Data:
Product Type:- A-K6P-M8-R-G-5M-GY-1-X-A-4
Order Number:
- 101206011
EAN:
- 4030661372259
eCl@ss Numbers:
- Version 12.0: 27-06-03-11
- Version 11.0: 27-06-03-11
- Version 9.0: 27-06-03-11
ETIM Numbers:
- Version 7.0: EC001855
- Version 6.0: EC001855
Approvals:
- cULus
Gross Weight:
- 175 g
Features:
- Number of Poles: 6
- Number of Conductors: 6
Mechanical Data – Connection Technology:
- Cable Length: 5 m
- Conductor Cross-Section: 0.14 mm²
- Cable Diameter: 4.9 mm
- Bending Radius (fixed): 5 x Ø cable
- Bending Radius (dynamic): 10 x Ø cable
- Cable Sheath Color: gray
- Cable Sheath Material: PVC
Mechanical Data – Connector Side A:
- Connector Type: Coupling, M8
- Design: Straight
- Locking Mechanism: Latching
- Lock Material: Plastic, TPU
- Grip Body Material: Plastic, TPU
- Grip Body Color: Black
Environmental Conditions:
- Protection Class: IP65, IP65, IP69
- Operating Temperature (Connector): -30 ... +90 °C
- Operating Temperature (Fixed): -40 ... +80 °C
- Operating Temperature (Dynamic): -5 ... +80 °C
Electrical Data:
- Thermal Continuous Current: 1.5 A
- Rated Operating Voltage: 30 VAC / 30 VDC
- Rated Operating Current: 1,500 mA
Pin Assignment:
- PIN 1: Green
- PIN 2: Yellow
- PIN 3: Gray
- PIN 4: Pink
- PIN 5: White
- PIN 6: Brown
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The stated data and information have been carefully checked. Images may differ from the original. Further technical data can be found in the operating manual. Technical changes and errors excepted.
Type: A-K6P-M8-R-G-5M-GY-1-X-A-4
