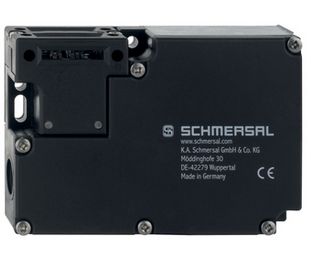

Schmersal AZM 161SK-12/12RK-024G safety locking device 101196106
|
271,48 EUR |
|||||||||||
|
( 323,06 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1128840 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101196106 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101196106:
The AZM 161SK-12/12RK-024G safety interlock switch is a highly reliable electromechanical switch operating on a closed-circuit principle. Designed for high safety requirements, it offers a locking force of up to 2,600 N and is rated IP67 for demanding environments. With four safety contacts, two auxiliary contacts, and three integrated status LEDs, it ensures flexible and secure operation.
Technical Data:
Product Designation:
- AZM 161SK-12/12RK-024G
Article Number:
- 101196106
EAN:
- 4030661363950
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals - Regulations:
- Certificates: IFA, cULus, CCC
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
General Data:
- Coding Level per EN ISO 14119: Low
- Operating Principle: Electromechanical
- Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 450 g
Features:
- Closed-Circuit Principle: Yes
- Auxiliary Release: Yes
- Integrated Indicator: Yes, 3 LEDs
- Number of Actuation Directions: 3
- Number of Safety Contacts: 4
- Number of Auxiliary Contacts: 2
Safety Considerations:
- Performance Level: Up to PL c
- Category: 1
- B10D NC Contacts: 2,000,000 cycles
- B10D NO Contacts: 1,000,000 cycles
- Service Life: 20 years
Mechanical Data:
- Mechanical Durability: At least 1,000,000 cycles
- Locking Force: Up to 2,600 N
- Latching Force: 30 N
- Forced Opening Distance: 10 mm
- Actuation Speed: Maximum 2 m/s
- Mounting: Screws (3x M5, flat-head screws)
Dimensions:
- Length: 30 mm
- Width: 130 mm
- Height: 90 mm
Connection Technology:
- Cable Entry: 2 x M16 x 1.5
- Connection Type: Screw terminals
- Conductor Cross-Section: 0.25–1.5 mm²
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -30 to +60 °C
- Storage and Transport Temperature: -30 to +85 °C
Electrical Data:
- Thermal Continuous Current: 6 A
- Operating Voltage: 24 VAC/DC
- Maximum Power Consumption: 10 W
- Switching Elements: NO, NC
- Maximum Switching Frequency: 1,000 /h
Electrical Data - Safety Contacts:
- Voltage AC-15: 230 VAC, Current: 4 A
- Voltage DC-13: 24 VDC, Current: 2.5 A
Electrical Data - Auxiliary Contacts:
Included in Delivery:
Notes:
Type: AZM 161SK-12/12RK-024G
Questions & answers
What is the delivery time of Schmersal AZM 161SK-12/12RK-024G safety locking device 101196106?
The article Schmersal AZM 161SK-12/12RK-024G safety locking device 101196106 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101196106 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 161SK-12/12RK-024G safety locking device 101196106 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 161SK-12/12RK-024G safety locking device 101196106 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 161SK-12/12RK-024G safety locking device 101196106 we can offer you a price of 267,41 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
