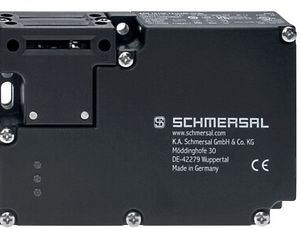

Schmersal AZM 161SK-12/03RK-024G safety locking device 101195904
|
264,08 EUR |
|||||||||||
|
( 314,26 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1237234 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101195904 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101195904:
The AZM 161SK-12/03RK-024G safety interlock switch is a high-performance and reliable safety product designed for applications with movable or removable protective devices. With an impressive retention force of up to 2,600 N and a robust housing made of glass-fiber-reinforced thermoplastic, it is ideal for industrial environments. The switch operates on the closed-circuit principle, features five safety contacts, and provides additional safety with an integrated auxiliary release and LED status indicator.
Technical Data:
Product Designation:
- AZM 161SK-12/03RK-024G
Article Number:
- 101195904
EAN:
- 4030661363127
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals - Regulations:
- Certificates: IFA, cULus, CCC
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
General Data:
- Coding Level per EN ISO 14119: Low
- Operating Principle: Electromechanical
- Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 460 g
Features:
- Closed-Circuit Principle: Yes
- Auxiliary Release: Yes
- Integrated Status Indicator: Yes
- Approach Directions: 3
- Number of Auxiliary Contacts: 1
- Number of Safety Contacts: 5
Safety Considerations:
- Performance Level: Up to PL c (Interlock Function up to PL e)
- Category: Up to Category 3 with 2-channel operation
- B10D NC Contacts: 2,000,000 cycles
- B10D NO Contacts: 1,000,000 cycles
- Service Life: 20 years
Mechanical Data:
- Mechanical Durability: 1,000,000 cycles
- Retention Force FZh: 2,000 N
- Latching Force: 30 N
- Forced Opening Force: At least 30 N
- Mounting: 3x M5 flat-head screws
Dimensions:
- Length: 30 mm
- Width: 130 mm
- Height: 90 mm
Connection Technology:
- Cable Entry: 2 x M16 x 1.5
- Connection Type: Screw terminals
- Conductor Cross-Section: 0.25–1.5 mm²
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -30 to +60 °C
- Protection Class: II
Electrical Data:
- Rated Control Voltage: 24 VAC/DC
- Thermal Continuous Current: 6 A
- Switching Element: NO, NC
- Switching Principle: Slow-action contacts with positive break
Included in Delivery:
- Actuator not included.
- Accessories: M5 triangle key for auxiliary release available separately.
Type: AZM 161SK-12/03RK-024G
Questions & answers
What is the delivery time of Schmersal AZM 161SK-12/03RK-024G safety locking device 101195904?
The article Schmersal AZM 161SK-12/03RK-024G safety locking device 101195904 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101195904 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 161SK-12/03RK-024G safety locking device 101195904 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 161SK-12/03RK-024G safety locking device 101195904 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 161SK-12/03RK-024G safety locking device 101195904 we can offer you a price of 260,12 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
