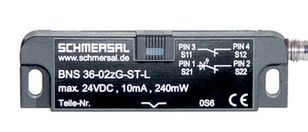

Schmersal BNS 36-02z-ST-L, Safety Sensor
|
59,11 EUR |
|||||||||||
|
( 70,34 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 155576 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101193156 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101193156:
Product description in English:
The magnetic safety sensor BNS 36-02Z-ST-L is a compact and reliable solution for monitoring protective devices. With a low coding level according to EN ISO 14119, it is ideal for standardized applications. The fiberglass-reinforced thermoplastic housing ensures high durability and robustness, while the left-sided door hinge allows easy integration into existing systems.
The sensor operates on a magnetic principle and tolerates horizontal and vertical offsets between the sensor and actuator. Secure switching distances of 7 mm (ON) and 17 mm (OFF) ensure reliable functionality. With an IP67 protection rating, the sensor is resistant to dust and moisture and suitable for temperatures ranging from -25 °C to +70 °C.
The 4-pin M8 connector with snap-in locking makes installation straightforward. It features two safety contacts (normally closed) and is designed for a service life of 20 years. The BNS 36-02Z-ST-L is an excellent choice for applications where precision and safety are paramount.
Technical specifications:
Ordering information:
- Product designation: BNS 36-02Z-ST-L
- Article number: 101193156
- EAN: 4030661359823
- eCl@ss number: 27-27-44-01
- ETIM number: EC002544
Approvals and standards:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
Mechanical specifications:
- Operating principle: Magnetic
- Door hinge: Left
- Dimensions: Length 13 mm, Width 88 mm, Height 25 mm
- Protection class: IP67
- Lifespan: 25,000,000 switching cycles (B10D NC)
- Switching distances: Sao = 7 mm, Sar = 17 mm
- Connection type: M8 connector, 4-pin, snap-in locking
Electrical specifications:
- Switching voltage: max. 75 VDC
- Switching current: max. 0.4 A
- Switching power: max. 10 W
- Switching elements: 2 normally closed (NC)
- Switching frequency: max. 5 Hz
Environmental conditions:
- Ambient temperature: -25 °C to +70 °C
- Vibration resistance: 10–55 Hz, amplitude 1 mm
- Shock resistance: 30 g / 11 ms
Special features:
- Magnetic operating principle tolerates offset between sensor and actuator
- Note: Actuator is not included in the delivery
Accessories:
- Recommended actuator: BPS 36-2
- Recommended safety control units: SRB-E-301ST, SRB-E-201LC
Type: BNS 36-02z-ST-L
Questions & answers
What is the delivery time of Schmersal BNS 36-02z-ST-L, Safety Sensor?
The article Schmersal BNS 36-02z-ST-L, Safety Sensor is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101193156 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 36-02z-ST-L, Safety Sensor always at the best possible price. We can give you a discount of 2% on Schmersal BNS 36-02z-ST-L, Safety Sensor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal BNS 36-02z-ST-L, Safety Sensor we can offer you a price of 57,34 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
