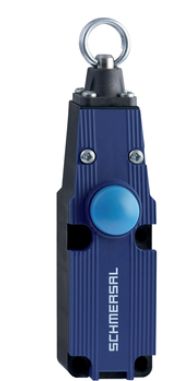

Schmersal ZQ 700-02 cable emergency switch 101192478
|
89,36 EUR |
|||||||||||
|
( 106,34 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320662 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101192478 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101192478:
The ZQ 700-02 complies with the latest safety standards such as EN ISO 13850, EN IEC 60947-5-1, and EN IEC 60947-5-5, meeting the highest industrial requirements. The high protection class of IP67 ensures that the switch can be used in demanding environments.
Technical Data:
Product Type:- ZQ 700-02
Order Number:
- 101192478
EAN:
- 4030661352671
eCl@ss Numbers:
- Version 12.0: 27-37-12-01
- Version 11.0: 27-37-12-01
- Version 9.0: 27-37-12-01
ETIM Numbers:
- Version 7.0: EC002033
- Version 6.0: EC002033
Approvals:
- cULus
- CCC
General Data:
- Housing Material: Plastic, thermoplastic
- Cover Material: Plastic, thermoplastic
- Maximum Rope Length: 10 m
- Gross Weight: 217 g
General Data - Properties:
- Number of Safety Contacts: 2
Safety Considerations:
- Regulations: EN ISO 13849-1
- Service Life: 20 years
Safety Outputs:
- B10D NC Contact: 100,000 operations
Mechanical Data:
- Mechanical Lifespan, minimum: 1,000,000 operations
Mechanical Data - Connection Technology:
- Connection Type: Screw terminal M20 x 1.5
- Minimum Conductor Cross-Section: 0.75 mm²
- Maximum Conductor Cross-Section: 2.5 mm²
Mechanical Data - Dimensions:
- Width: 40.5 mm
- Height: 160 mm
- Depth: 50.9 mm
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 ... +70 °C
- Maximum Relative Humidity: 95 %
Insulation Ratings:
- Rated Insulation Voltage Ui: 500 V
- Rated Impulse Withstand Voltage Uimp: 6 kV
Electrical Data:
Switching Element:
Switching Principle:
Contact Material:
Notes:
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
Type: ZQ 700-02
Questions & answers
What is the delivery time of Schmersal ZQ 700-02 cable emergency switch 101192478?
The article Schmersal ZQ 700-02 cable emergency switch 101192478 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101192478 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal ZQ 700-02 cable emergency switch 101192478 always at the best possible price. We can give you a discount of 2% on Schmersal ZQ 700-02 cable emergency switch 101192478 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal ZQ 700-02 cable emergency switch 101192478 we can offer you a price of 86,68 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
