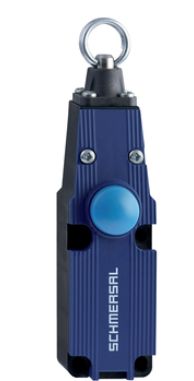

Schmersal ZQ 700-11 cable pull emergency switch 101192476 content_copy

Product Description in English:

The ZQ 700-02 is a compact rope pull emergency switch designed for safety shutdowns on machines and equipment. It is made of durable thermoplastic, making it highly resistant to environmental influences. The switch allows for a maximum rope length of 10 meters and provides a reliable safety solution for emergency machine shutdowns. With two safety contacts and a high mechanical lifespan of 1,000,000 operations, this emergency switch is built for long-term, dependable use.

The ZQ 700-02 complies with the latest safety standards such as EN ISO 13850, EN IEC 60947-5-1, and EN IEC 60947-5-5, meeting the highest industrial requirements. The high protection class of IP67 ensures that the switch can be used in demanding environments.

Technical Data:

Product Type:

• ZQ 700-02

Order Number:

• 101192478

EAN:

• 4030661352671

eCl@ss Numbers:

• Version 12.0: 27-37-12-01
• Version 11.0: 27-37-12-01
• Version 9.0: 27-37-12-01

ETIM Numbers:

• Version 7.0: EC002033
• Version 6.0: EC002033

Approvals:

• cULus
• CCC

General Data:

• Housing Material: Plastic, thermoplastic
• Cover Material: Plastic, thermoplastic
• Maximum Rope Length: 10 m
• Gross Weight: 217 g

General Data - Properties:

• Number of Safety Contacts: 2

Safety Considerations:

• Regulations: EN ISO 13849-1
• Service Life: 20 years

Safety Outputs:

• B10D NC Contact: 100,000 operations

Mechanical Data:

• Mechanical Lifespan, minimum: 1,000,000 operations

Mechanical Data - Connection Technology:

• Connection Type: Screw terminal M20 x 1.5
• Minimum Conductor Cross-Section: 0.75 mm²
• Maximum Conductor Cross-Section: 2.5 mm²

Mechanical Data - Dimensions:

• Width: 40.5 mm
• Height: 160 mm
• Depth: 50.9 mm

Environmental Conditions:

• Protection Class: IP67
• Ambient Temperature: -25 ... +70 °C
• Maximum Relative Humidity: 95 %

Insulation Ratings:

• Rated Insulation Voltage Ui: 500 V
• Rated Impulse Withstand Voltage Uimp: 6 kV

Electrical Data:

Thermal Continuous Current: 10 A

Voltage, Utilization Category AC-15: 230 VAC

Current, Utilization Category AC-15: 4 A

Voltage, Utilization Category DC-13: 24 VDC

Current, Utilization Category DC-13: 4 A

Switching Element:

NC Contact

Switching Principle:

Snap Action

Contact Material:

Silver

Notes:

Recommended rope length for emergency stop switches depends on the ambient temperature.

After installation, the rope should be pulled several times to adjust the rope thimbles. The rope should then be retightened using an eye bolt or turnbuckle.

Rope supports are recommended every 2 to 5 meters (see accessories).

K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
