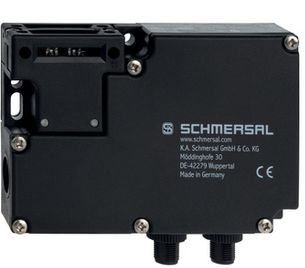

Schmersal AZM 161ST-11/12RK-024 safety locking device 101192435

Product Description in English:

The AZM 161ST-11/12RK-024 is an electromechanical safety switch designed for industrial applications requiring high safety standards. With a fiberglass-reinforced, self-extinguishing plastic housing and an IP67 protection rating, this switch is robust and reliable, even in demanding environments.

The switch operates on the closed-circuit principle and features three safety contacts and two auxiliary contacts, providing flexible application possibilities. With a maximum retention force of 2,600 N and a mechanical lifespan of at least 1,000,000 switching cycles, the AZM 161ST-11/12RK-024 is durable and versatile.

Installation is facilitated by built-in connectors (M12, 4-pin and 8-pin, A-coding), ensuring quick and secure connections. The switch is suitable for sliding, removable, and rotating protective devices. An integrated auxiliary release can be operated with a separately available M5 triangular key, simplifying maintenance and setup tasks.

Technical Data:

Product Type Designation:

• AZM 161ST-11/12RK-024

Order Number:

• 101192435

EAN:

• 4030661352350

eCl@ss Numbers:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

Product Description in English:

The AZM 161ST-11/12RK-024 is an electromechanical safety switch designed for industrial applications requiring high safety standards. With a fiberglass-reinforced, self-extinguishing plastic housing and an IP67 protection rating, this switch is robust and reliable, even in demanding environments.

The switch operates on the closed-circuit principle and features three safety contacts and two auxiliary contacts, providing flexible application possibilities. With a maximum retention force of 2,600 N and a mechanical lifespan of at least 1,000,000 switching cycles, the AZM 161ST-11/12RK-024 is durable and versatile.

Installation is facilitated by built-in connectors (M12, 4-pin and 8-pin, A-coding), ensuring quick and secure connections. The switch is suitable for sliding, removable, and rotating protective devices. An integrated auxiliary release can be operated with a separately available M5 triangular key, simplifying maintenance and setup tasks.

Technical Data:

Product Type Designation:

• AZM 161ST-11/12RK-024

Order Number:

• 101192435

EAN:

• 4030661352350

eCl@ss Numbers:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

ETIM Numbers:

• Version 7.0: EC002593
• Version 6.0: EC002593

Approvals:

• IFA
• cULus
• CCC

General Data:

• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
• Operating Principle: Electromechanical
• Housing Material: Fiberglass-reinforced thermoplastic
• Gross Weight: 450 g

Mechanical Data:

• Lifespan: At least 1,000,000 switching cycles
• Retention Force: Up to 2,600 N
• Dimensions: Length: 30 mm, Width: 130 mm, Height: 90 mm

Electrical Data:

• Thermal Continuous Current: 2 A
• Operating Voltage: 24 VAC/DC
• Contact Elements: Normally Open (NO), Normally Closed (NC)
• Power Consumption: Maximum 10 W

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -25 ... +60 °C

Scope of Delivery:

• Actuator not included.

Note:

Auxiliary release for maintenance and setup with M5 triangular key (available separately).

Suitable for sliding, removable, and rotating protective devices.

Type: AZM 161ST-11/12RK-024
