Schmersal AZM 161ST-12/11KA-024 safety locking device 101192426
|
317,21 EUR |
|
|
( 377,48 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1237116 |
|---|---|
| Mfg Part No: | 101192426 |
| Weight: | 0 kg |
Product information for Schmersal 101192426:
Product Description in English:

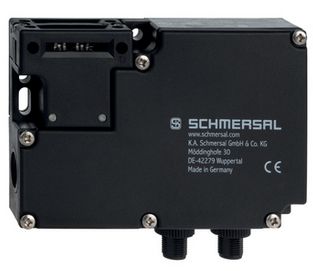

The AZM 161ST-12/11KA-024 is an electromechanical safety switch known for its robust design and high reliability. Featuring a fiberglass-reinforced, self-extinguishing thermoplastic housing with an IP67 protection rating, it is ideal for demanding industrial applications. The switch offers high retention force up to 2,600 N and includes three safety contacts and two auxiliary contacts, ensuring a high level of operational safety.
Installation is straightforward with an M12 connector (4- or 8-pin options), and manual unlocking is facilitated by a triangular key available separately. The AZM 161ST-12/11KA-024 is suitable for movable, removable, or rotating safety guards and complies with international standards like EN ISO 13849-1, EN ISO 14119, and EN IEC 60947-5-1.
With a mechanical lifespan of at least one million switching cycles and an electrical lifespan of up to 20 years, this switch is durable and dependable. It operates on the working current principle and offers flexible usability in temperatures ranging from -25 °C to +60 °C.
Technical Data:
Product type designation:
- AZM 161ST-12/11KA-024
Order number:
- 101192426
EAN:
- 4030661352336
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
Approvals:
- IFA
- cULus
- CCC
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Operating principle: electromechanical
- Housing material: fiberglass-reinforced thermoplastic, self-extinguishing
- Gross weight: 462 g
Mechanical Data:
- Lifespan: at least 1,000,000 switching cycles
- Retention force: up to 2,600 N
- Dimensions: 30 mm x 130 mm x 90 mm
Electrical Data:
- Thermal continuous current: 2 A
- Operating voltage: 24 VAC/DC
- Contact elements: Normally open (NO), Normally closed (NC)
- Power consumption: maximum 10 W
Scope of Delivery:
- Actuator not included.
Note:
- Use in power outages requires strict risk assessment.
- Auxiliary unlocking available for maintenance or setup with a separately available triangular key M5.
Type: AZM 161ST-12/11KA-024
