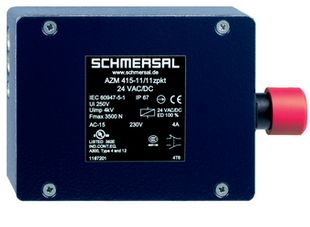

Schmersal AZM 415-11/02ZPKAT 24VAC/DC safety interlock 101192239
|
504,23 EUR |
|||||||||||
|
( 600,03 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2112084 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101192239 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101192239:
Product Description in English:
The AZM 415-11/02ZPKAT 24VAC/DC is an electromechanical safety switch housed in a robust painted aluminum casing for enhanced environmental resistance. With a locking force of 3,500 N and a mechanical lifetime of at least 1,000,000 operations, this switch is ideal for demanding safety applications, including movable and rotary safety guards.
Technical Data:
Order Details:
- Product Type: AZM 415-11/02ZPKAT 24VAC/DC
- Article Number: 101192239
- EAN: 4030661351957
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-27-26-03
- ETIM Version 7.0: EC002593
Approvals and Standards:
- Certifications: cULus, CCC
- Standards: BG-GS-ET-19, EN IEC 60947-5-1
General Information:
- Operating Principle: Electromechanical
- Housing Material: Aluminum, painted
- Gross Weight: 945 g
Features:
- Operating Current Principle: Yes
- Actuation Directions: 1
- Number of Safety Contacts: 3
- Number of Auxiliary Contacts: 1
- Suitable for: 1 Safety Door
Safety Considerations:
- Standards: EN ISO 13849-1
- Service Life: 20 years
- B10D NC Contact: 2,000,000 operations
Mechanical Data:
- Mechanical Lifetime: Minimum 1,000,000 operations
- Locking Force FZh: 3,500 N
- Latching Force: 150 N to 400 N
- Forced Opening Distance: 5 mm
- Minimum Forced Opening Force: 15 N
- Max. Actuation Speed: 0.2 m/s
Connection Technology:
- Connection Type: Screw Terminal M20 x 1.5
- Connection Cross-Section: 2 x 0.75 mm² to 2 x 2.5 mm²
Dimensions:
- Length: 46.5 mm
- Width: 130 mm
- Height: 100 mm
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 ... +50 °C
- Relative Humidity: Non-condensing, non-icing
Electrical Data:
- Thermal Continuous Current: 6 A
- Rated Control Supply Voltage: 24 VAC/DC
- Voltage and Current, AC-15: 230 VAC / 4 A
- Voltage and Current, DC-13: 24 VDC / 1 A
- Max. Electrical Power Consumption: 10 W
- Switching Elements: NO Contact, NC Contact
- Switching Principle: Slow-action switching
- Contact Material: Silver
Additional Information:
- Suitable for: Movable and rotary safety guards
Type: AZM 415-11/02ZPKAT 24VAC/DC
Questions & answers
What is the delivery time of Schmersal AZM 415-11/02ZPKAT 24VAC/DC safety interlock 101192239?
The article Schmersal AZM 415-11/02ZPKAT 24VAC/DC safety interlock 101192239 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101192239 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 415-11/02ZPKAT 24VAC/DC safety interlock 101192239 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 415-11/02ZPKAT 24VAC/DC safety interlock 101192239 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 415-11/02ZPKAT 24VAC/DC safety interlock 101192239 we can offer you a price of 496,67 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
