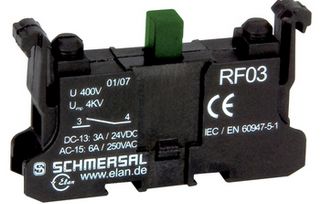

Schmersal RF03 contact element S 3-4 101190087
|
6,58 EUR |
|||||||||||
|
( 7,83 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331457 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101190087 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101190087:
Order Data:
- Product Type: RF03
- Article Number (Order Number): 101190087
- EAN (European Article Number): 4030661456751
eCl@ss Number:
- Version 12.0: 27-37-13-02
- Version 11.0: 27-37-13-02
- Version 9.0: 27-37-13-02
ETIM Number:
- Version 7.0: EC000041
- Version 6.0: EC000041
General Data:
- Regulations: - EN IEC 60947-5-1
- Climate Resistance: IEC 60068-2-30
- Housing Material: Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
- Label Material: Plastic, Polyamide PA
- Gross Weight: 20 g
- EN IEC 60947-1
General Data - Properties:
- Number of Normally Open Contacts: 1
Safety Considerations:
- Service Life: 20 years
Safety Considerations - Safety Outputs:
- B10D Normally Closed Contact (NC): 100,000 cycles
Mechanical Data:
- Mounting Instructions: Clip-on
- Minimum Mechanical Life: 10,000,000 cycles
- Positive Opening Distance: 2 mm
- Contact Opening Width: 3 mm
- Mounting Flange Position: 1 / 2 / 3
Mechanical Data - Connection Technology:
- Connection Type: Screw Connection M20 x 1.5
- Minimum Cross-Section: - 0.5 mm², solid
- Maximum Cross-Section: - 2.5 mm², solid
- Note: All specifications including ferrules.
- Terminal Torque: 1 Nm
- 0.5 mm², flexible
- 1.5 mm², flexible
Mechanical Data - Dimensions:
- Length: 44 mm
- Width: 9 mm
- Height: 25.5 mm
Environmental Conditions:
- Protection Class of Switch Room: IP40
- Protection Class of Terminals/Connections: IP40
- Operating Temperature: -25 ... +75 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Environmental Conditions - Insulation Ratings:
- Rated Insulation Voltage Ui: 400 V
- Rated Impulse Withstand Voltage Uimp: 4 kV
- Pollution Degree: 3
Electrical Data:
- Thermal Continuous Current: 10 A
- Voltage, Utilization Category AC-15: 250 VAC
- Current, Utilization Category AC-15: 6 A
- Voltage, Utilization Category DC-13: 24 VDC
- Current, Utilization Category DC-13: 3 A
- Low Voltage Capability: ≥ 5 V / ≥ 1 mA
- Switching Element: Normally Open (NO)
- Switching Principle: Slow Action
- Maximum Switching Frequency: 1,200 /h
- Contact Material: Silver
- Contact Designation: 3-4
Type: RF03
Questions & answers
What is the delivery time of Schmersal RF03 contact element S 3-4 101190087?
The article Schmersal RF03 contact element S 3-4 101190087 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101190087 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal RF03 contact element S 3-4 101190087 always at the best possible price. We can give you a discount of 2% on Schmersal RF03 contact element S 3-4 101190087 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 25 pieces of Schmersal RF03 contact element S 3-4 101190087 we can offer you a price of 6,48 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
