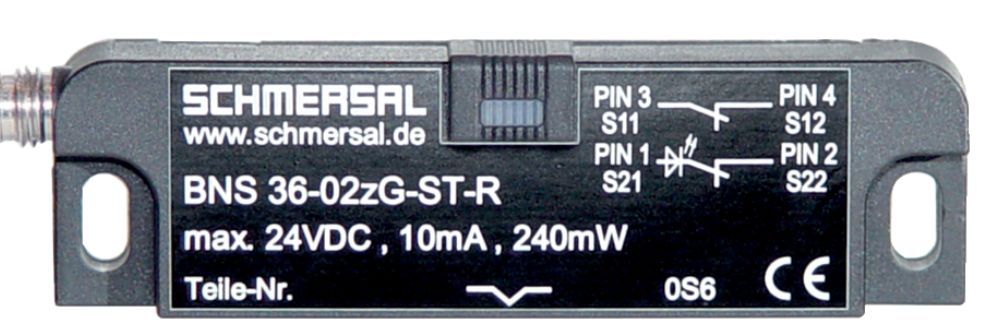

Schmersal BNS 36-02Z-ST-R safety sensor 101189905
|
59,11 EUR |
|||||||||||
|
( 70,34 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 608518 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101189905 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101189905:
Order Data:
Product Type:
BNS 36-02Z-ST-RArticle Number:
101189905EAN (European Article Number):
4030661359984eCl@ss Number, Version 12.0:
27-27-44-01
eCl@ss Number, Version 11.0:
27-27-24-02
eCl@ss Number, Version 9.0:
27-27-24-02
ETIM Number, Version 7.0:
EC002544
ETIM Number, Version 6.0:
EC002544
Approvals - Regulations:
Certificates:
cULus
General Data:
Regulations:
BG-GS-ET-14
EN IEC 60947-5-3
Coding Level According to EN ISO 14119:
lowOperating Principle:
magneticInstallation Conditions (mechanical):
quasi-flushHousing Material:
Plastic, glass-fiber reinforced thermoplasticGross Weight:
30 gGeneral Data - Features:
Coding:
Yes
Number of Normally Closed Contacts (NC):
2Number of Safety Contacts:
2Safety Considerations:
Regulations:
EN ISO 13849-1
Service Life:
20 yearsSafety Consideration - Safety Outputs:
B10D Normally Closed (NC):
25,000,000 switching cycles
Mechanical Data:
Actuating Element:
Magnet
Door Hinge Position:
RightDirection of Movement:
Frontal to the active surfaceMechanical Data - Switching Distances According to EN IEC 60947-5-3:
Note (Switching Distance Sn):
Axial offset between safety sensor and actuator tolerates horizontal and vertical offset. The allowable offset depends on the distance of the active surfaces of the sensor and actuator. Within the tolerance range, the sensor is actively switched.
Assured Switching Distance ON Sao:
7 mmAssured Switching Distance OFF Sar:
17 mmMechanical Data - Connection Technology:
Connection Type:
Connector M8, 4-pin, latching
Mechanical Data - Dimensions:
Sensor Length:
13 mm
Sensor Width:
88 mmSensor Height:
25 mmEnvironmental Conditions:
Protection Class:
IP67
Ambient Temperature:
-25 ... +70 °CStorage and Transport Temperature:
-25 ... +70 °CVibration Resistance:
10 … 55 Hz, Amplitude 1 mmShock Resistance:
30 g / 11 msElectrical Data:
Maximum Switching Voltage:
75 VDC
Maximum Switching Current:
0.4 AMaximum Switching Power:
10 WSwitching Element:
2 Normally Closed Contacts (NC)Maximum Switching Frequency:
5 HzIncluded Items:
The actuator is not included in the delivery.
Accessories:
Recommended Actuator:
BPS 36-2
Recommended Safety Control Unit:
SRB-E-301STSRB-E-201LC
Note:
Pin assignment of versions with an integrated connector is indicated in parentheses.Type: BNS 36-02z-ST-R
Questions & answers
What is the delivery time of Schmersal BNS 36-02Z-ST-R safety sensor 101189905?
The article Schmersal BNS 36-02Z-ST-R safety sensor 101189905 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101189905 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 36-02Z-ST-R safety sensor 101189905 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 36-02Z-ST-R safety sensor 101189905 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal BNS 36-02Z-ST-R safety sensor 101189905 we can offer you a price of 58,22 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
